Trumpf-system No.15.904 Flatten/Hemming Press Brake Punches/top tools - Deep Hemming Press Brake Tool
The 24° Flattening Hemming Press Brake Punch is a specialized upper tool designed for sheet metal hemming, flattening and closed-edge forming. Its slim working profile is developed for applications where a conventional flattening punch cannot reach deep enough into a pre-bent flange or may interfere with the side wall of the workpiece.
Tooling Syetem :
Bendmax-System TrumpfTooling Style :
punch/top-toolsAngle :
24°Radius :
0.6 mmTooling Height :
158mmMaterial :
42CrMoLoad :
800 kN/m max.NO.15.904
- 24° Flattening & Hemming Press Brake Punch for Deep and Narrow Applications
▶ Click to Trumpf press brake tooling catalog

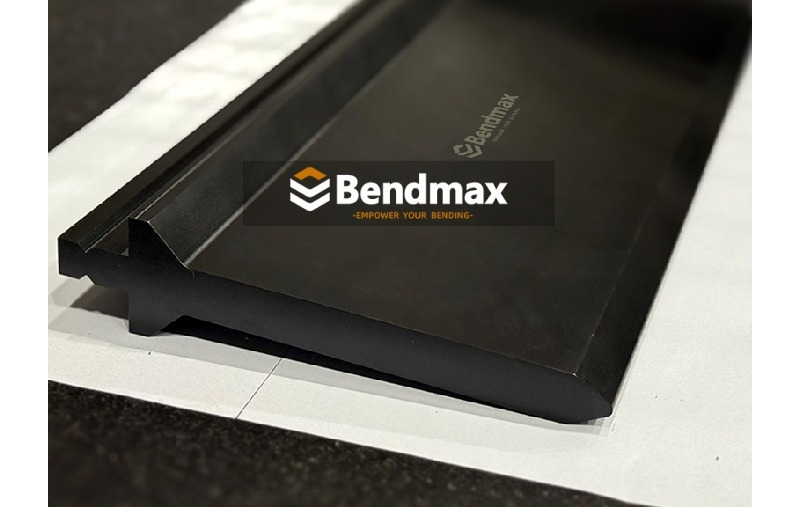

Flattening Punch vs. Standard Punch
A standard press brake punch is primarily designed to form an angle.
A Flattening Press Brake Punch has a different purpose: it is designed to compress and flatten an already formed sheet edge.
That difference is reflected directly in the tool geometry. The elongated narrow profile is not simply a decorative shape—it is intended to provide access, clearance and controlled force transmission during the flattening stage.
For this reason, flattening tooling should be selected according to the pre-bend geometry, material thickness, hem size, required final profile and available machine/tooling interface, rather than selecting it only according to the punch angle.
offset bending hinging bending hat channel rib bending un-balanced u bending
V bending 90° bending flatting bending R bending hemming bending louver bending
