Trumpf-system Flat Bottom Flattening punches/top tools - No.19.041 | Compatible with System Trumpf/Wila/LVD Press Brake Hemming Top Tool

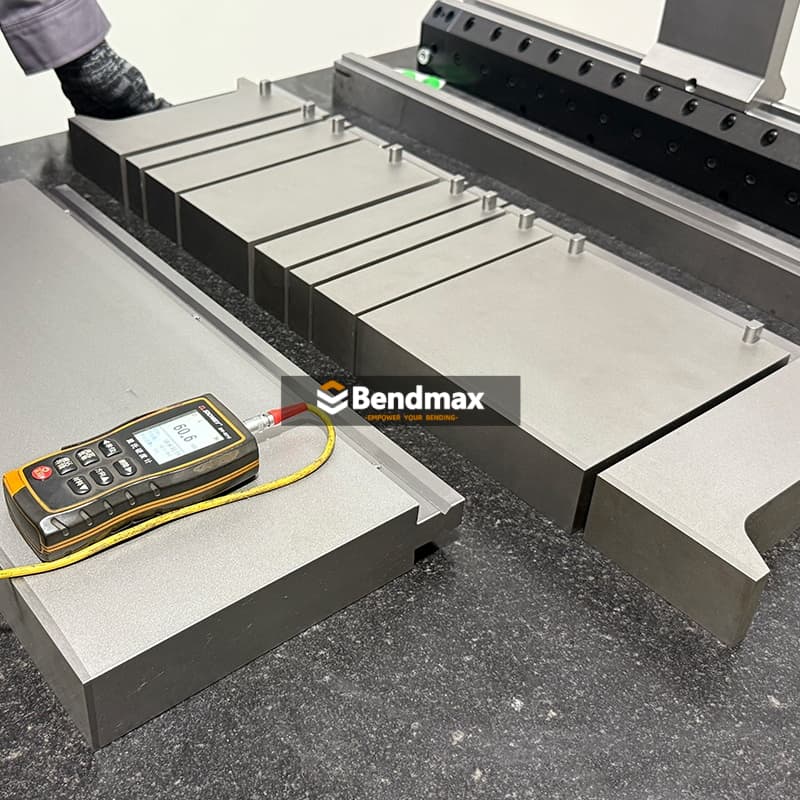

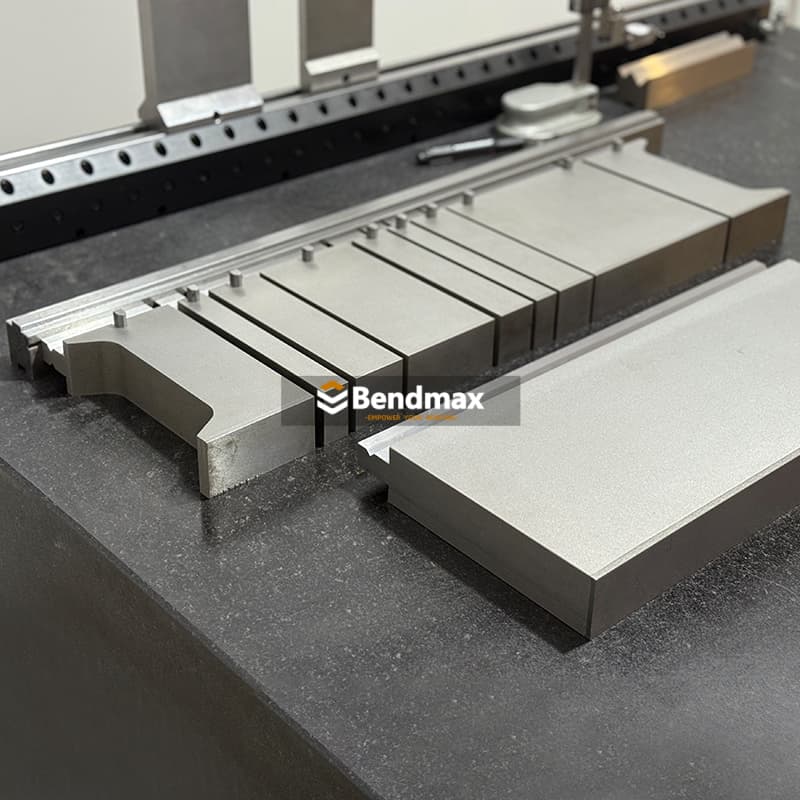

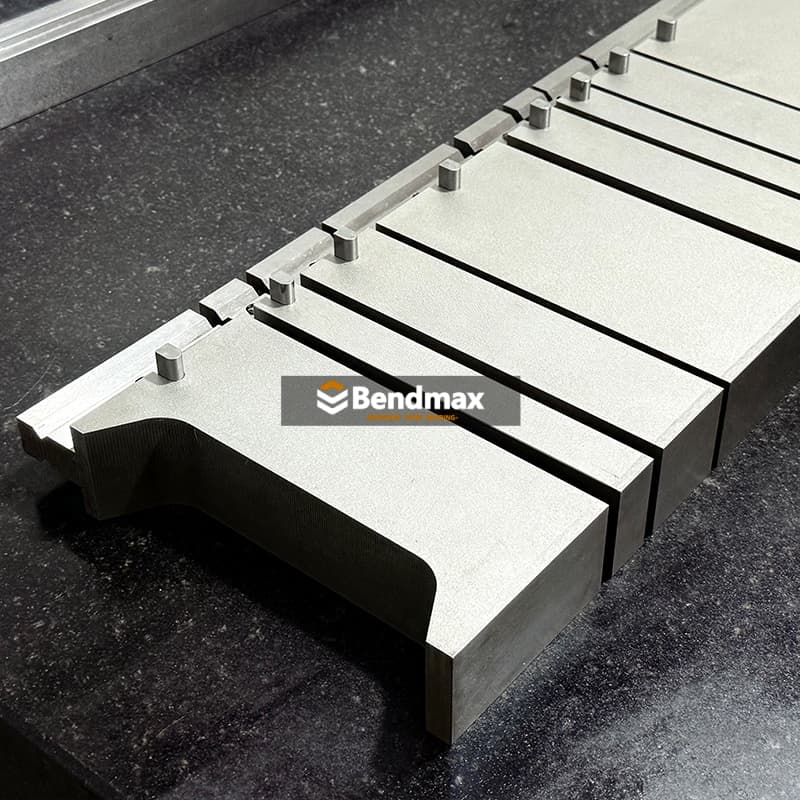

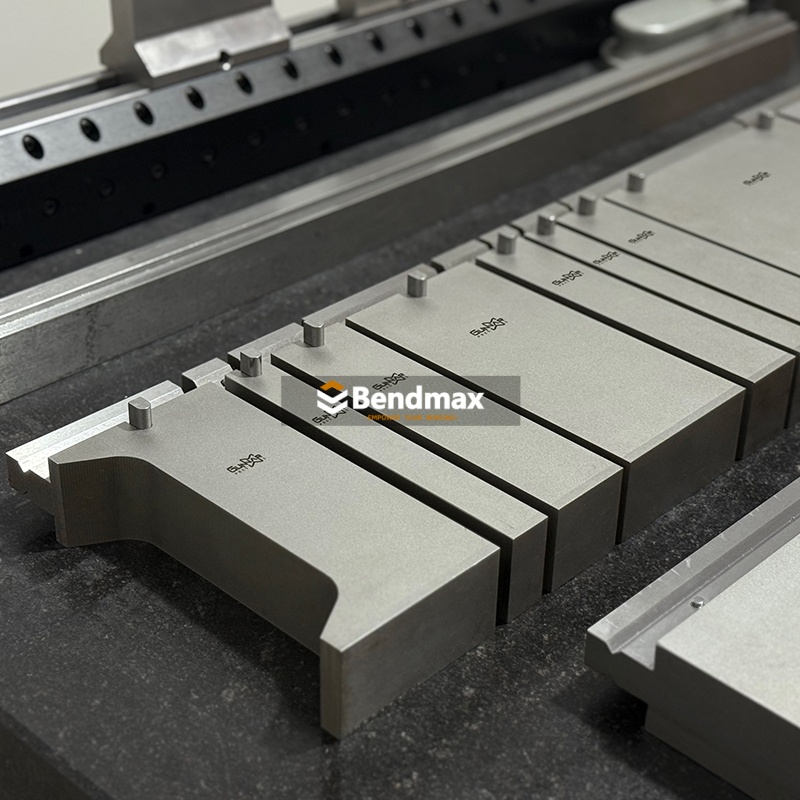

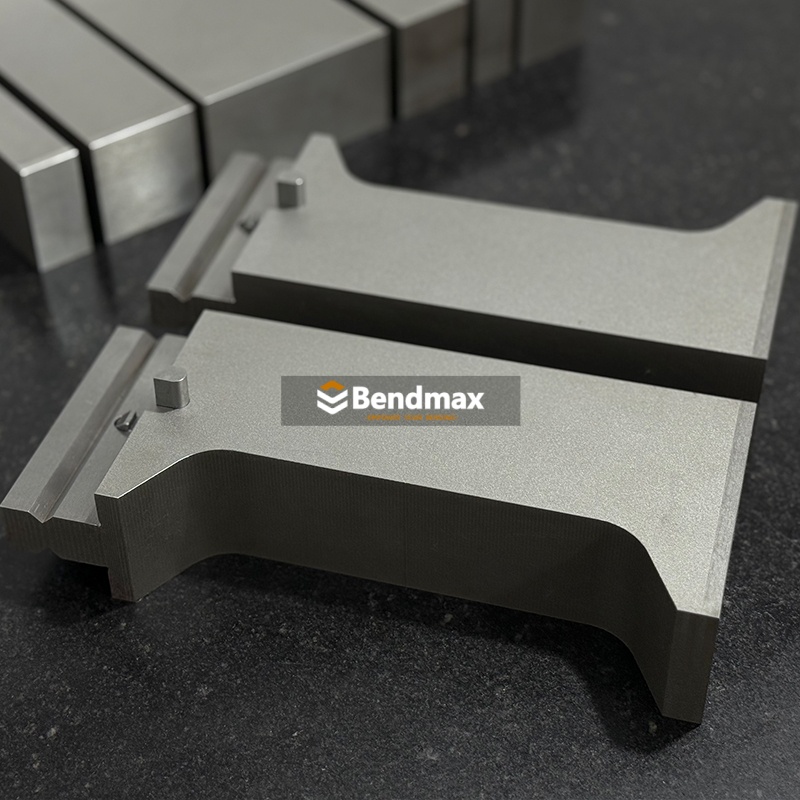

Bendmax WILA-System Flat Bottom Flattening Punch No.19.041 is a precision press brake top tool specifically designed for hemming and flattening sheet metal edges. Featuring a flat bottom working surface, this punch provides uniform pressure distribution during the final flattening stage, resulting in smooth, consistent hems with minimal surface marking.
Tooling Syetem :
Bendmax-System TrumpfTooling Style :
punch/top-toolsTooling Height :
120mmMaterial :
42CrMoLoad :
1000 kN/m max.NO.19.041- Flat Bottom Flattening punches/top tools，Force on head
▶ Click to Trumpf press brake tooling catalog
Manufactured to WILA tooling standards, this flattening punch is fully compatible with WILA-style hydraulic clamping systems and can be paired with matching flattening dies to achieve high-precision hemming operations across a wide range of sheet metal applications.
Application
The WILA-System Flat Bottom Flattening Punch No.19.041 is widely used for:
• Sheet metal hemming
• Edge flattening
• Closed hem forming
• Electrical cabinet manufacturing
• Stainless steel fabrication
• Automotive sheet metal components
• Precision metal fabrication
offset bending hinging bending hat channel rib bending un-balanced u bending
V bending 90° bending flatting bending R bending hemming bending louver bending
