Trumpf-system 60°/R8/V120/H120 NO.25.116 - Heavy-Duty Press Brake Lower Tool for Thick Plate Forming

Recommended Default Sheet Metal Tolerances

Trumpf-system 60°/R8/V120/H120 NO.25.116 - Heavy-Duty Press Brake Lower Tool for Thick Plate Forming

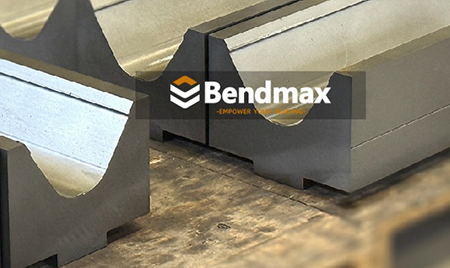

he Trumpf-Style No.25.116 Single V Die features a 60° die angle, 120 mm V-opening, R8 shoulder radius, and 120 mm height, making it ideal for heavy-duty air bending and bottom bending of thick sheet metal. Based on the standard tooling guideline (V = 6–8 × material thickness), the V120 die is recommended for 15–20 mm mild steel applications. It produces a typical inside bend radius of approximately R15 mm (V/8) during air bending. A minimum flange length of 80 mm or greater is recommended to ensure stable bending performance. Suitable for structural steel, heavy fabrication, construction equipment, and industrial machinery components.

Tooling Syetem :
Bendmax Trumpf/Wila/Bystronic System
Tooling Style :
Die
Angle :
60°
Radius :
R=8.0 mm
Tooling Height :
H=120 mm
Die opening :
V=120 mm
Load :
1600 kN/m max.

Product categories

New Products

Product Details

NO.25.116

Large Single-V Die -Bendmax

Precision Engineered for Thin Materials

V-dies are the most commonly used press brake dies in modern sheet metal fabrication. Available in a wide range of V-opening dimensions, they provide flexibility for bending different materials and thicknesses. Combined with the appropriate punch geometry and bending depth, a single set of V-dies can support numerous air-bending applications with excellent precision and efficiency.

Precision Forming

Whether your project requires custom tooling, precision fabrication, welding services, or engineering modifications, our experienced team is ready to support your production needs. We focus on preserving your design requirements while optimizing manufacturing efficiency, ensuring high-quality sheet metal components are delivered on schedule.

Partner with our fabrication specialists to turn your concepts into reliable finished products. Contact us today to discuss your project and receive a customized quotation.

Key Advantages of Press Brake V Dies

1. High Bending Accuracy
Provides consistent bend angles, stable inside radii, and repeatable part dimensions when matched with the correct material thickness and V-opening.

2. Improved Production Efficiency
Supports quick setup, reduced tooling changes, and faster production cycles, making it ideal for both small batches and high-volume manufacturing.

3. Versatile and Cost-Effective
Suitable for a wide range of materials, thicknesses, and bending applications while minimizing tooling investment and maintenance costs.

REQUEST QUOTES

trumpf syetem 28° acute press brake punch

15.450

Trumpf Punches/top-tools

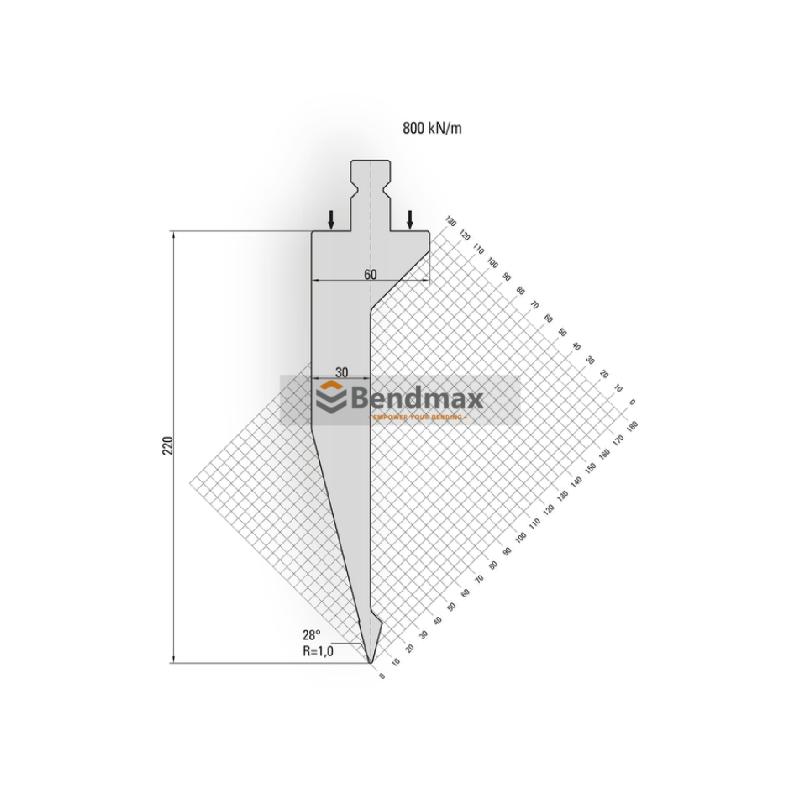

Angle=28°,R=1.0 mm,H=220 mm

14.156

Trumpf Punches/top-tools

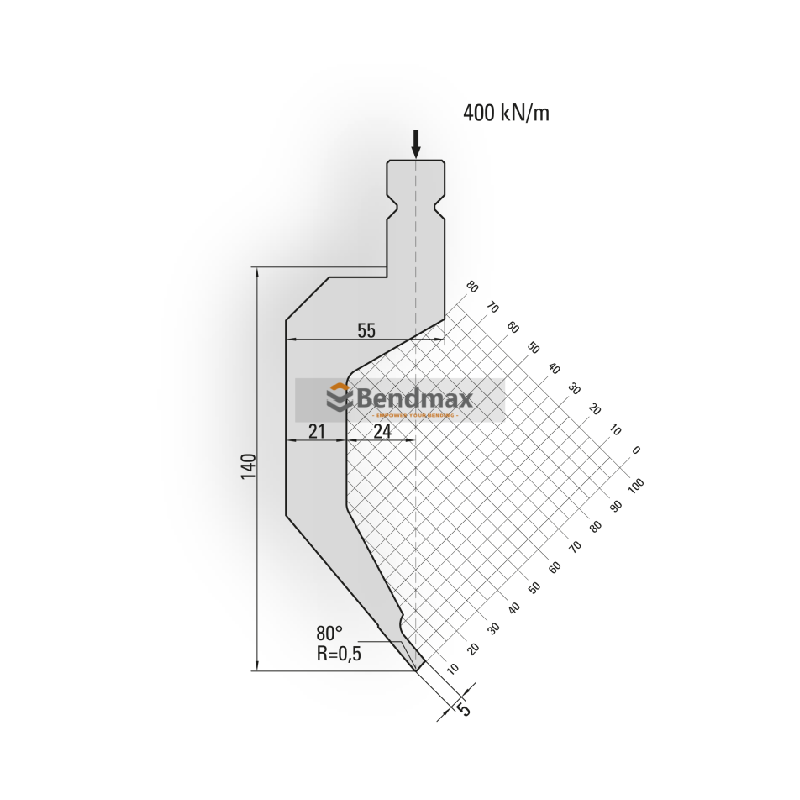

Angle=80°,R=0.5 mm,H=140 mm
