Production Process Overview
Our Services
Empower your production with our 15 years of manufacturing excellence. We provide dedicated 24-hour engineering support (6 days a week), combining detailed technical drawings, strict bending protocols, and premium tooling to ensure your projects run flawlessly.
One-Stop Solutions
Customized Service Support
Strict Quality Control
Global Logistics Support
Dedicated Customer Service
From expert design to global delivery, every step is engineered for excellence

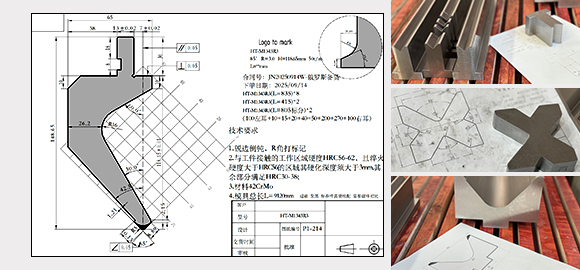

Designing Bendmax delivers precision-engineered press brake tooling through expert design and advanced 3D analysis. |
|
—————————————————————————————————————————————————————————————————————————————————————————————
|

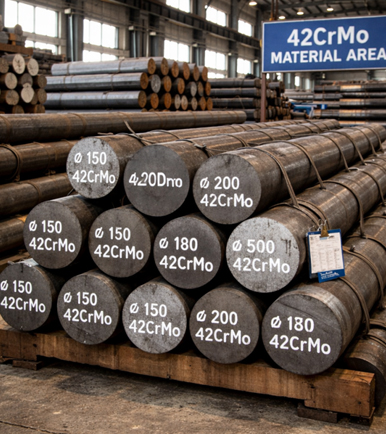

Material Bendmax selects premium forged 42CrMo4 steel for its press brake tooling—ensuring high strength, wear resistance, and reliable performance under demanding conditions. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

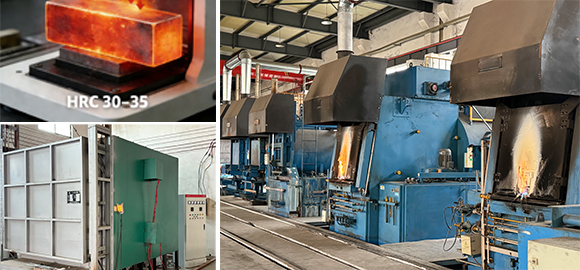

Body hardening Bendmax uses strictly forged 42CrMo4 steel for the first heat treatment, bringing the tool body to HRC 30–35 for enhanced strength and toughness. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

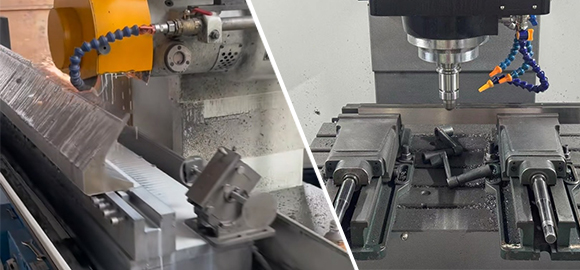

Milling Milling machines are used to shape the raw material (42CrMo or European brand 42CrMo4 steel) into the desired punch and die profiles for press brake tools. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

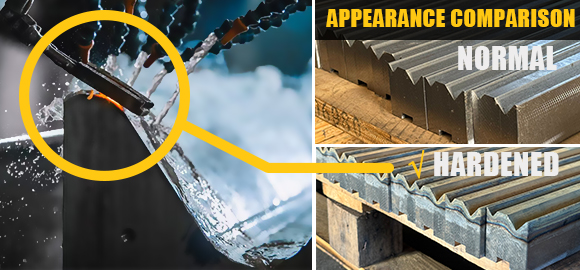

Deep hardening Bendmax applies induction hardening as a secondary deep treatment to the working area, achieving HRC 54–62 with a hardening depth of 3–5 mm. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

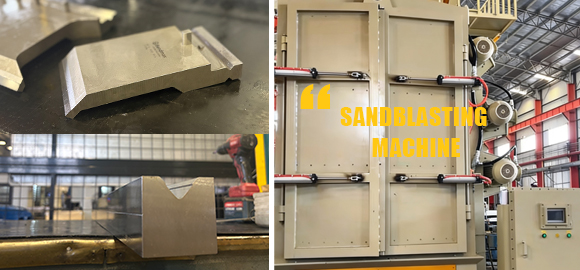

Sandblasting The surface is treated with sandblasting for anti-scratch protection and to relieve internal machining stress, with a maximum length limit of 950mm. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

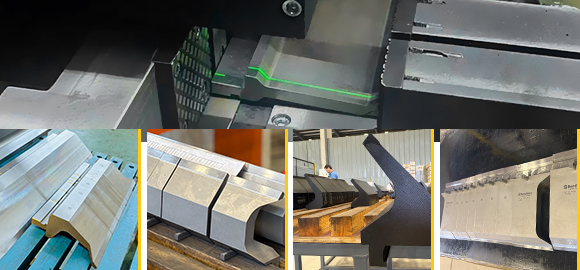

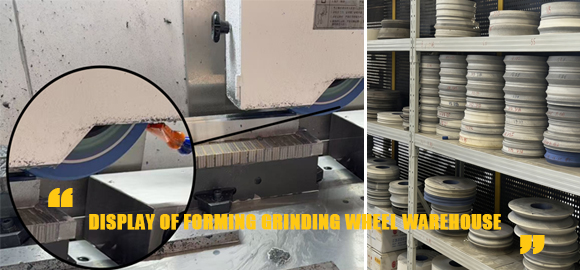

Grinding Bendmax uses CNC grinding for finish machining, completing punch angles and radii, as well as die shoulders and grooves in a single operation—ensuring consistent quality across all stocked tooling. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|
Cutting Normally we offer the standard length of Promecam (Euro) style press brake tooling: 835 mm solid, 415 mm solid and 835 mm sectioned. We are happy to provide custom cuts to special lengths. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

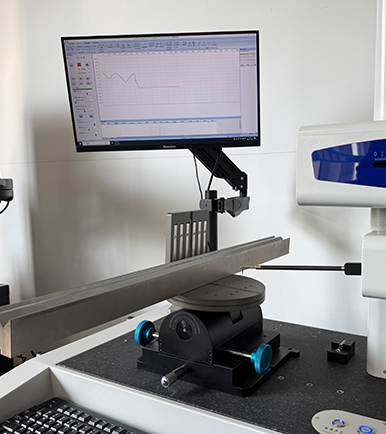

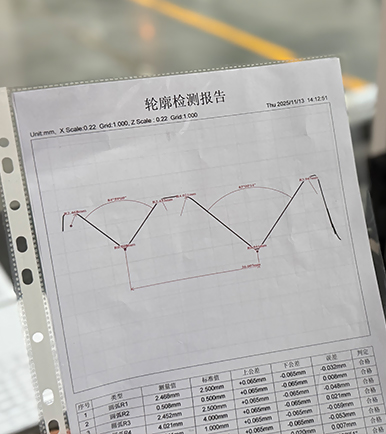

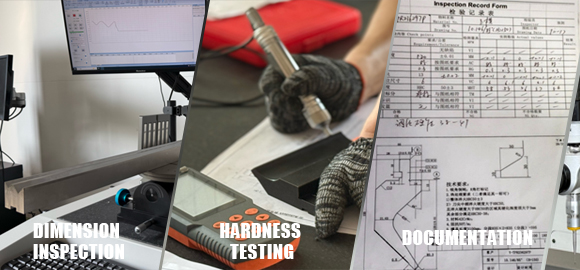

Quality Control We offer standard Promecam (Euro) style lengths (835mm solid, 415mm solid, and 835mm sectioned). Additionally, we provide custom cutting services to meet your specific length requirements. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

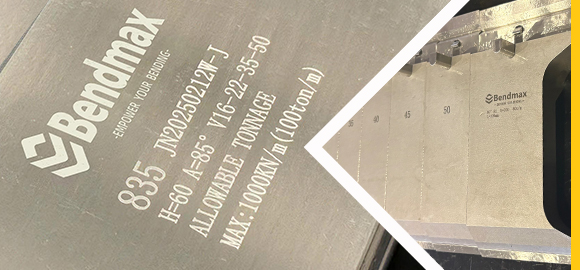

Laser Marking All Bendmax tools feature precise laser markings of key parameters—code, angle, radius, tonnage, and length—to ensure easy identification and accurate use. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

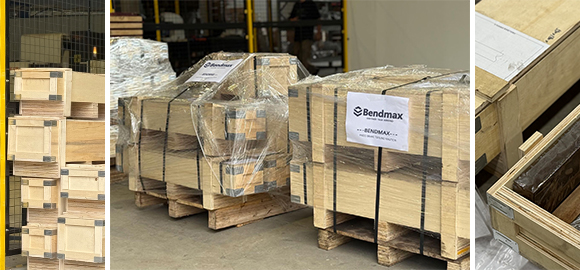

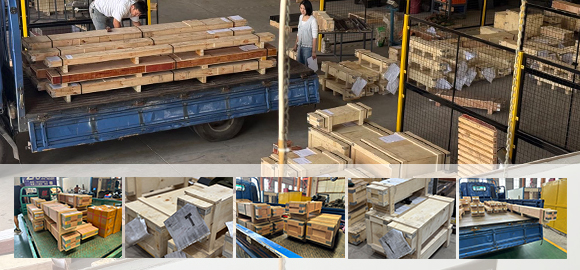

Package We apply anti-rust oil to the tool surface, wrap each one in greaseproof paper, and seal it individually in plastic. Standard tools are packed in individual cartons and reinforced with non-fumigation wooden crates for added protection during transportation. |
|
————————————————————————————————————————————————————————————————————————————————————————————
|

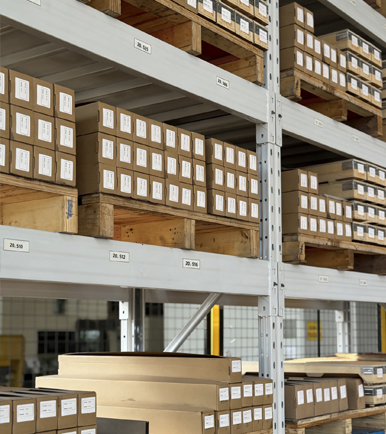

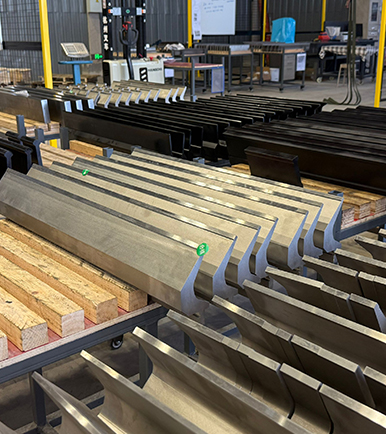

Delivery We have a lot of standard press brake tools in stock, and the delivery time is 3-5 days. If need customization , generally delivery time is 20-25 days. And we have a lot of export experience to help customers provide the best transportation method to save purchase costs. |
