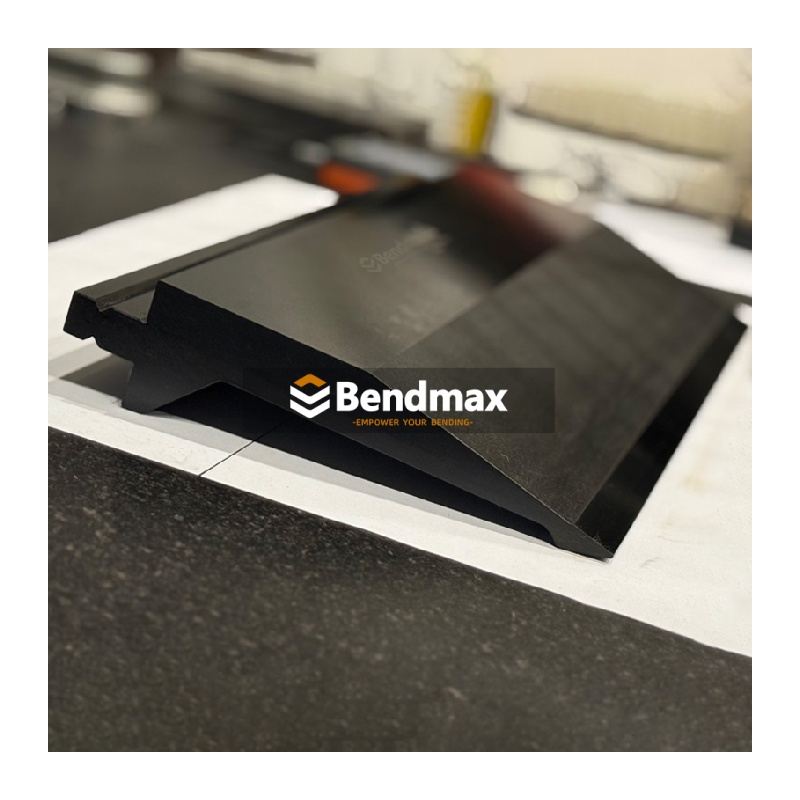

Trumpf-system No.15.450 Flatten Press Brake Punches/top tools - Narrow Tip Hemming & Sheet Metal Flattening Tool
The Flattening Press Brake Punch is a specialized upper tooling solution for sheet metal hemming, edge flattening and closed-edge forming. Unlike a conventional bending punch, this tool is designed to work with a previously bent sheet and progressively press the folded section into a flat or nearly flat condition.
Tooling Syetem :
Bendmax-System TrumpfTooling Style :
punch/top-toolsAngle :
28°Radius :
1,0 mmTooling Height :
140mmMaterial :
42CrMoLoad :
400 kN/m max.NO.15.450- Flattening Press Brake Punch Designed for Deep Hemming and Narrow Access
▶ Click to Trumpf press brake tooling catalog
Working Principle
1. Pre-Bending
The sheet metal edge is first bent to create the required preliminary hem profile.
2. Positioning
The pre-bent workpiece is positioned between the appropriate press brake tooling, with the folded section aligned beneath the flattening punch.
3. Flattening
The Flattening Press Brake Punch descends into the folded area. Its narrow working section provides the necessary clearance while the lower tip applies compressive force to the folded material.
4. Final Compression
Further controlled downward movement compresses the folded section, producing a flattened or closed hemmed edge according to the required part design.
offset bending hinging bending hat channel rib bending un-balanced u bending
V bending 90° bending flatting bending R bending hemming bending louver bending
