Heavy Duty Press Brake Dies Collection

Heavy duty press brake dies are specially engineered for high tonnage, thick plate bending, and demanding industrial applications. Compared to standard dies, they offer higher load capacity, enhanced durability, and superior structural stability.

Heavy duty press brake dies are used for bending thick materials under high force, providing better strength, longer life, and safer operation.

What Are Heavy Duty Press Brake Dies?

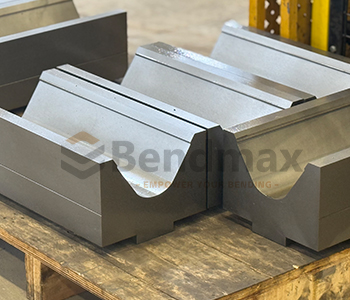

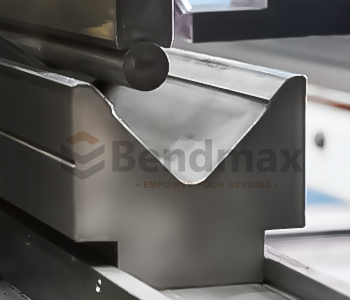

(Bendmax Partial Press Brake Heavy Duty V opening Dies display)

Heavy duty dies are designed with:

• Reinforced body structures
• Deep hardened working surfaces
• Optimized geometry for load distribution

They are typically used when:

• Material thickness exceeds 6 mm
• High-strength materials are involved
• Continuous production requires long tool life

Why Use Heavy Duty Press Brake Dies?

(Bendmax Press Brake Heavy Duty V opening Dies/Multi V Dies Example)

1. Higher Load Capacity

Heavy duty dies can handle significantly higher tonnage compared to standard tooling.

Typical capability:

• Standard dies: light to medium duty
• Heavy duty dies: up to 1000 kN/m or more

2. Improved Tool Life

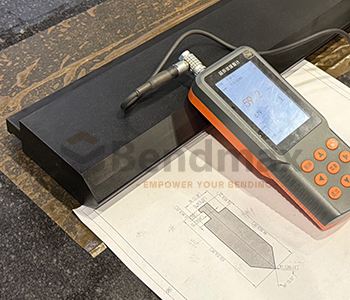

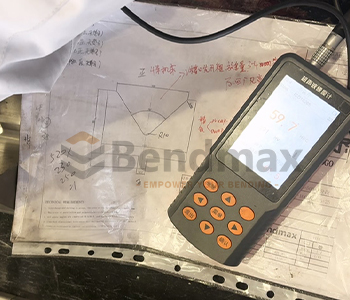

(Bendmax Heavy Duty Press Brake Tooling hardness test)

Thanks to:

• Hardened working surfaces (HRC 54–60)
• Wear-resistant alloy steel

These dies maintain precision even under extreme loads.

3. Better Bending Stability

A rigid die body reduces:

• Deflection
• Angle variation
• Dimensional errors

👉 This is critical for structural components.

Key Design Features

Reinforced Structure

• Larger cross-section
• Stronger load-bearing capacity

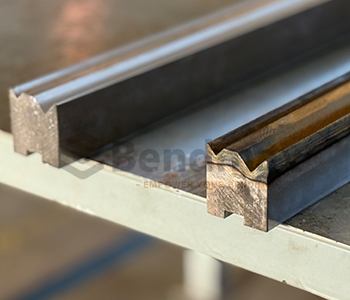

Deep Hardening

• Working area hardened for wear resistance
• Core maintains toughness to prevent cracking

Precision Grinding

• Ensures accurate bending angles
• Improves repeatability

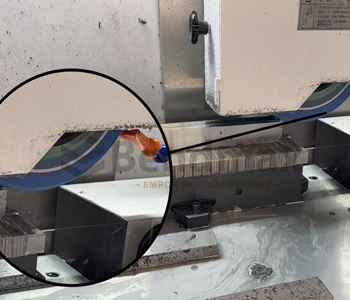

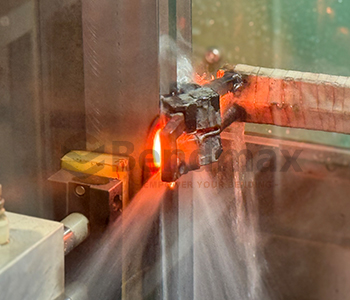

(Bendmax Design Features: Induction hardening heats the working area / Appearance Comparison / CNC Grinding)

V Opening Selection for Heavy Duty Dies

Choosing the correct V opening is critical for both tonnage control and bend quality.

Recommended Rule:

V opening = 6× to 10× material thickness

👉 Smaller V openings increase tonnage dramatically.

Tonnage Considerations

Tonnage increases with:

• Material thickness (squared effect)
• Smaller V openings
• Higher material strength

For reference, the air bending formula is:

Implication:

• Thick plate + small V die = extremely high tonnage requirement

👉 This is exactly where heavy duty press brake dies are essential.

Types of Heavy Duty Press Brake Dies

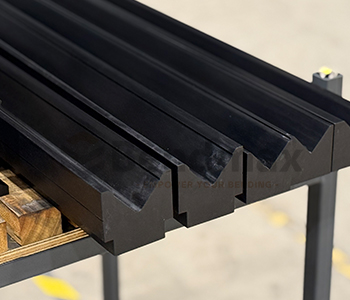

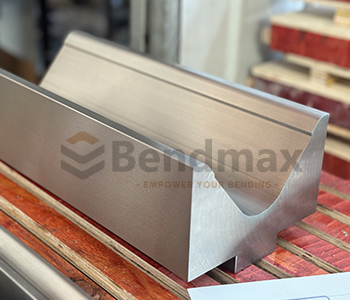

1. Single V Heavy Duty Dies

• Most common type
• High strength and stability
• Suitable for consistent production

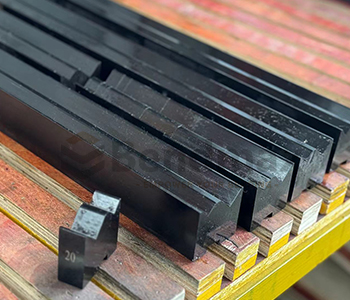

2. Double V Heavy Duty Dies

• Two V openings
• Flip design extends tool life
• Cost-effective

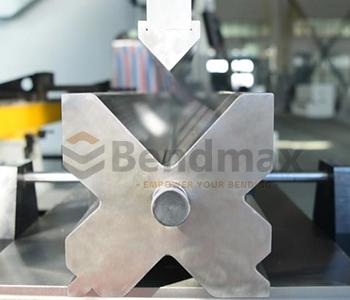

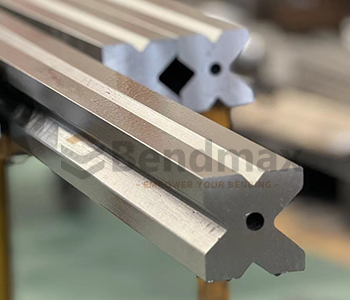

3. Multi V Heavy Duty Dies

Combines:

• flexibility of multi V press brake dies
• strength of heavy duty construction

👉 Ideal for workshops handling varying thicknesses.

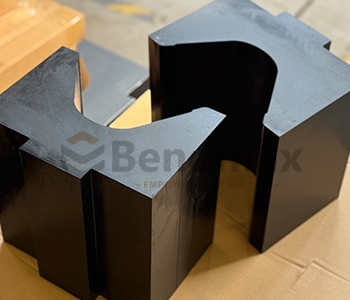

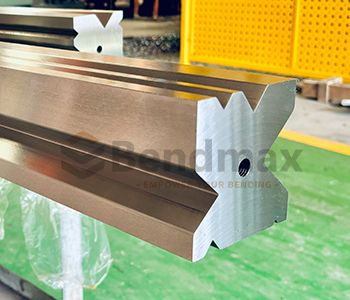

4. Custom Heavy Duty Dies

Designed for:

• large structures
• special bending angles
• oversized components

Applications

Heavy duty press brake dies are widely used in:

• Construction machinery
• Truck chassis manufacturing
• Shipbuilding
• Energy equipment
• Steel structures

Typical parts:

• thick brackets
• beams
• frames
• support structures

Heavy Duty vs Standard Dies

👉 Investment is higher, but long-term cost is lower due to durability.

Common Mistakes to Avoid

❌ Using standard dies for thick plate

Leads to:

• die deformation
• poor accuracy
• tool failure

❌ Choosing too small V opening

Causes:

• excessive tonnage
• machine overload

❌ Ignoring material strength

High-strength steel requires significantly more force.

Pro Tips for Tool Selection

• Always match die strength with machine capacity
• Use larger V openings to reduce tonnage when possible
• Combine with appropriate punch radius
• For flexibility, consider pairing with multi V press brake dies

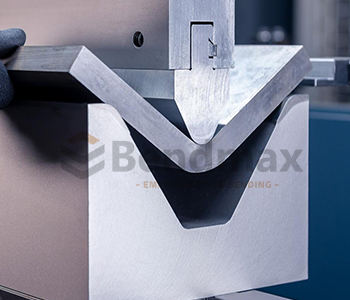

• For low-force bending, use a large V opening press brake die

FAQ: Heavy Duty Press Brake Dies

What are heavy duty press brake dies used for?

They are used for:

• thick material bending
• high tonnage operations
• industrial structural components

How do I choose the right V opening?

Use the rule:

V = 6–10 × thickness

Adjust based on:

• material type
• bending radius
• tonnage capacity

Are heavy duty dies worth the cost?

Yes. They provide:

• longer lifespan
• better accuracy
• higher safety

👉 Especially in high-load environments.

Heavy duty press brake dies are essential for any operation involving thick plate bending and high tonnage requirements.

They provide:

• superior strength
• long service life
• consistent bending accuracy

At BENDMAX, our heavy duty tooling solutions are designed for:

• maximum durability
• precision performance
• compatibility with major press brake systems
