In sheet metal bending operations, many operators are forced to use unsuitable tooling simply because the correct Heavy Duty Press Brake Tooling is not immediately available. Surprisingly, acceptable parts can sometimes still be produced using completely different tooling setups.
However, this approach is:
The best practice in press brake tooling selection should always focus on one simple objective:
Producing the highest-quality parts in the shortest possible time.
Understanding different types of press brake lower dies is therefore essential for improving productivity, reducing setup time, and ensuring bending consistency.
A press brake lower die is the tooling mounted on the bed of the press brake and works together with the punch to form sheet metal.
The lower die directly affects:
Common lower die categories include:
 |
 |
 |
 |
 |
|
|
|
|
|
 |
 |
 |
 |
 |
|
|
|
|
|

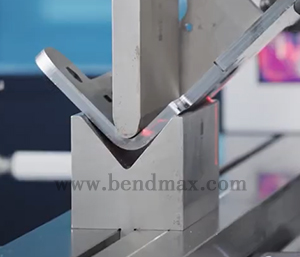

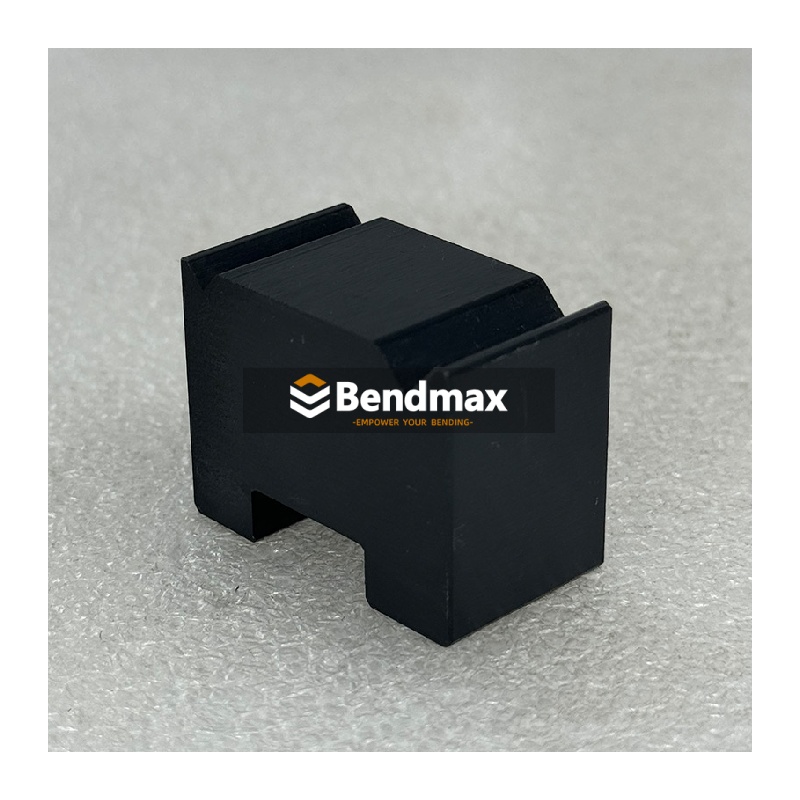

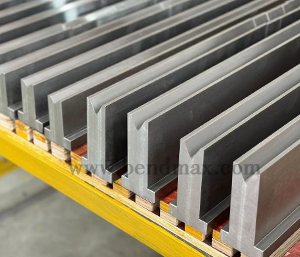

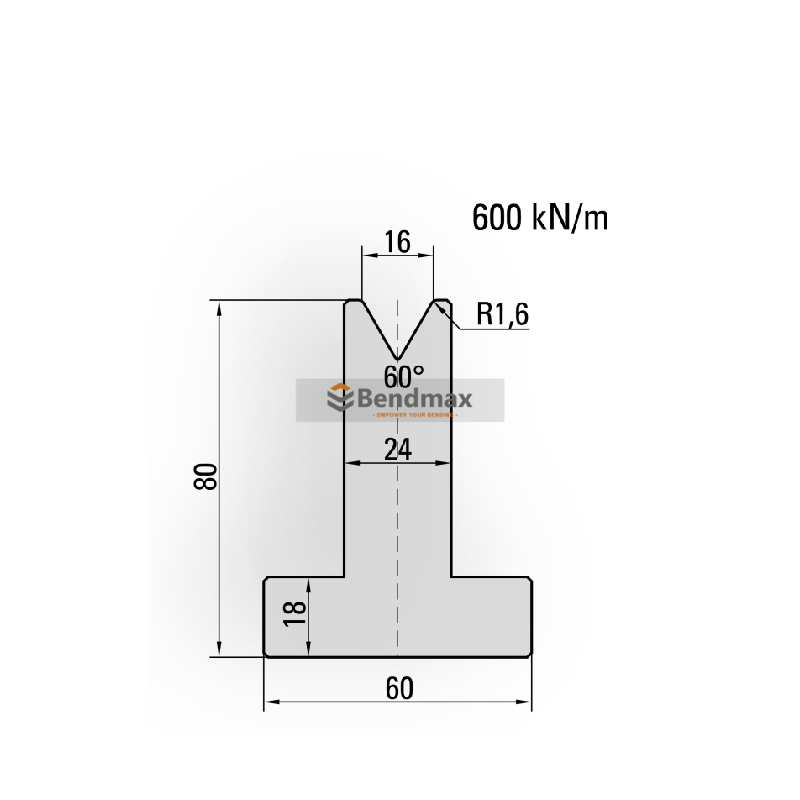

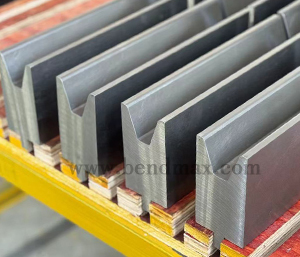

The Single V Die features one precision-ground V-opening and is widely used for standard air bending applications. It is ideal for small and medium-sized CNC press brake machines requiring high bending accuracy, stable forming performance, and quick setup.
With only one V-groove, operators can achieve consistent bending results and easier tooling alignment during production. Single V dies are commonly used for stainless steel, carbon steel, aluminum, and other sheet metal materials.Single V dies are the most traditional and widely used lower dies.
Common die angles include 30°, 60°, 85°, 86°, and 90°, suitable for producing bend angles of 90° and above depending on material springback and bending method.
 |
 |
 |
|
Advantages include:
|
Common types include:
|
Applications:
|

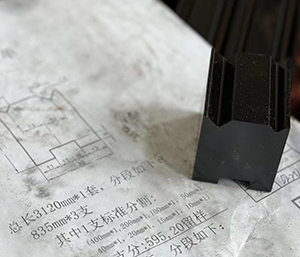

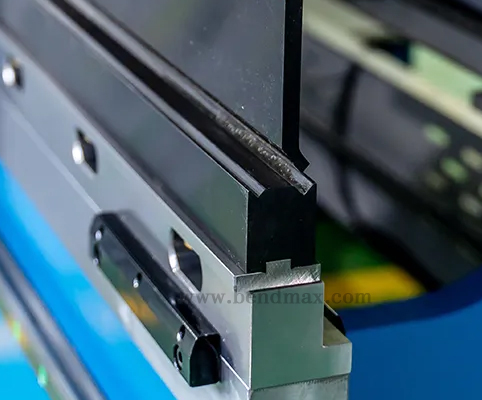

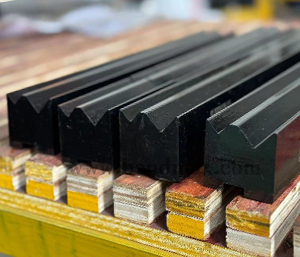

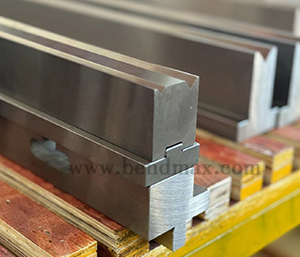

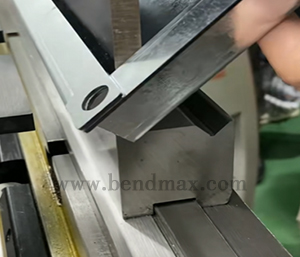

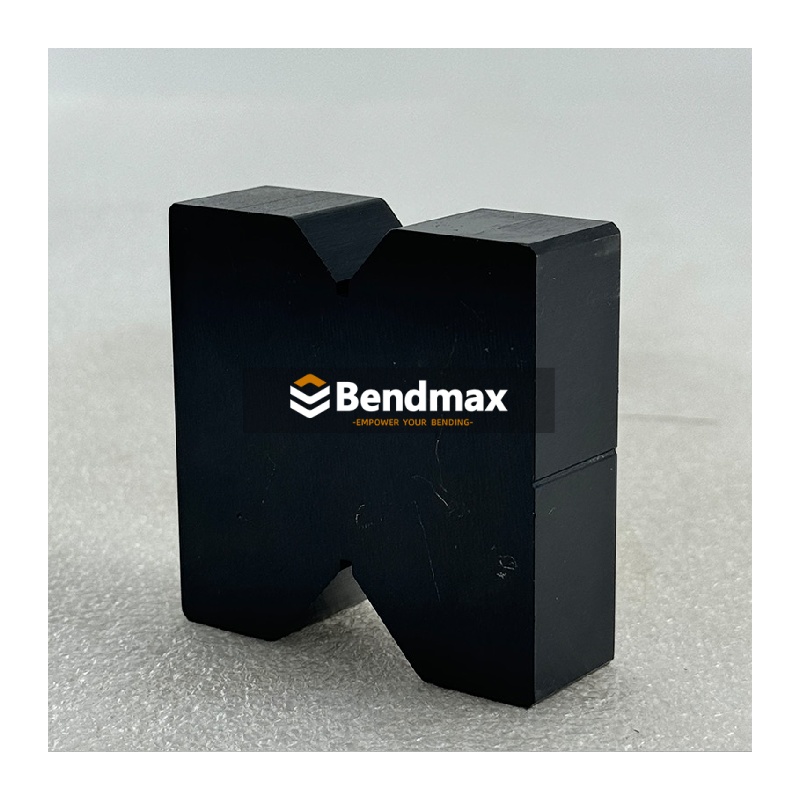

The Double V Die contains two different V-openings on the same die body, allowing operators to switch between groove sizes without changing tooling. This design greatly improves production efficiency and reduces machine downtime during multi-thickness bending operations.
It is especially suitable for sheet metal workshops processing different material thicknesses or multiple bend requirements in one production cycle. Double V dies provide flexibility, cost savings, and faster setup compared with single-opening tooling.
Common die angles include 30°, 60°, 85°, and 86°, supporting various air bending and bottom bending applications.
Examples:
They provide excellent flexibility while reducing tooling inventory.
 |
 |
 |
High-Strength Tool Steel Construction
Common materials:
Advantages:
Modern double-V dies often include:
Setup time can be reduced to:
One-third of traditional tooling systems.

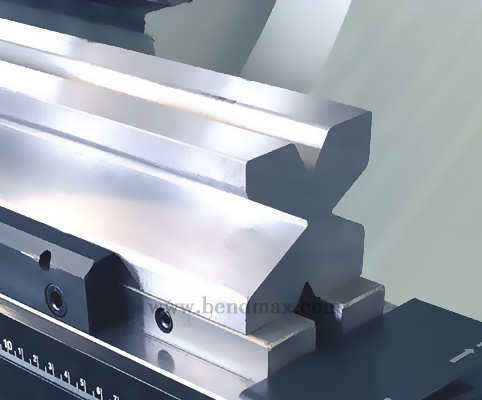

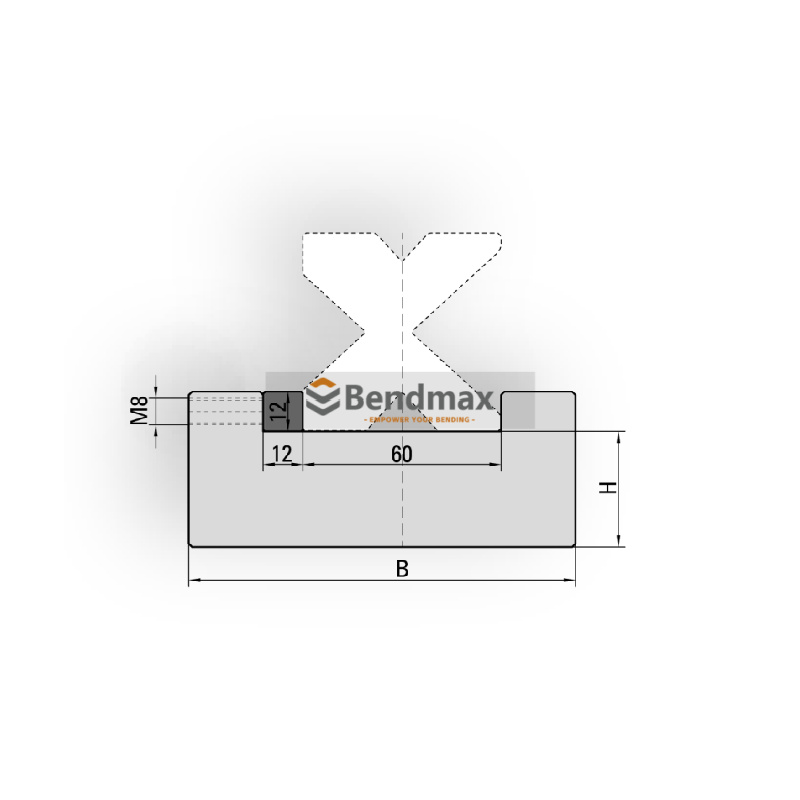

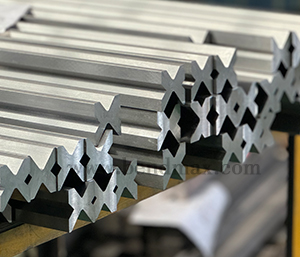

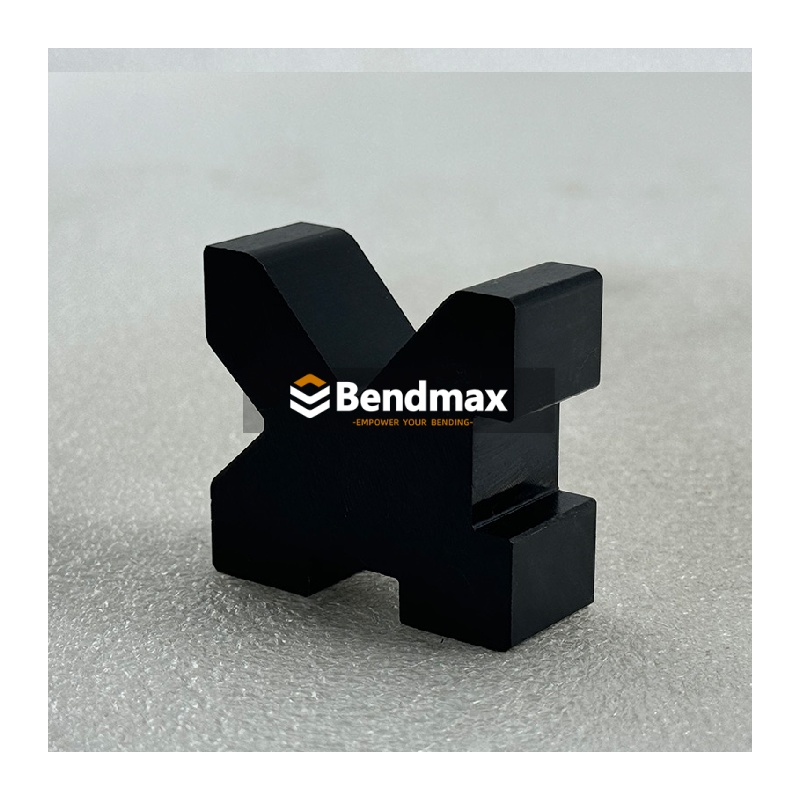

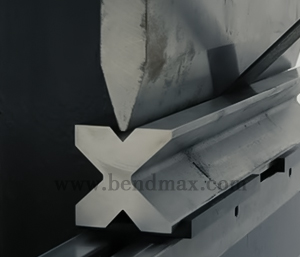

The Four V Die is a versatile multi-opening press brake die designed with four different V-grooves on four sides of the tooling body. Operators can rotate the die to quickly select different V-opening sizes for various sheet thicknesses and bending requirements.
This tooling is widely used in high-mix sheet metal production environments where flexibility, reduced tooling changes, and efficient machine setup are essential. It is suitable for bending stainless steel, mild steel, galvanized sheets, and aluminum materials.
Four V dies are available in multiple V-opening combinations and angle configurations to support precision bending for different applications and part geometries.
|
Typical combinations:
|
Advantages:
|
 |

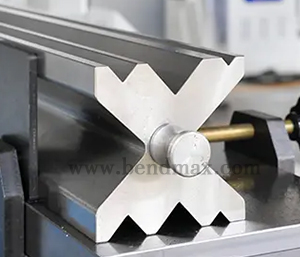

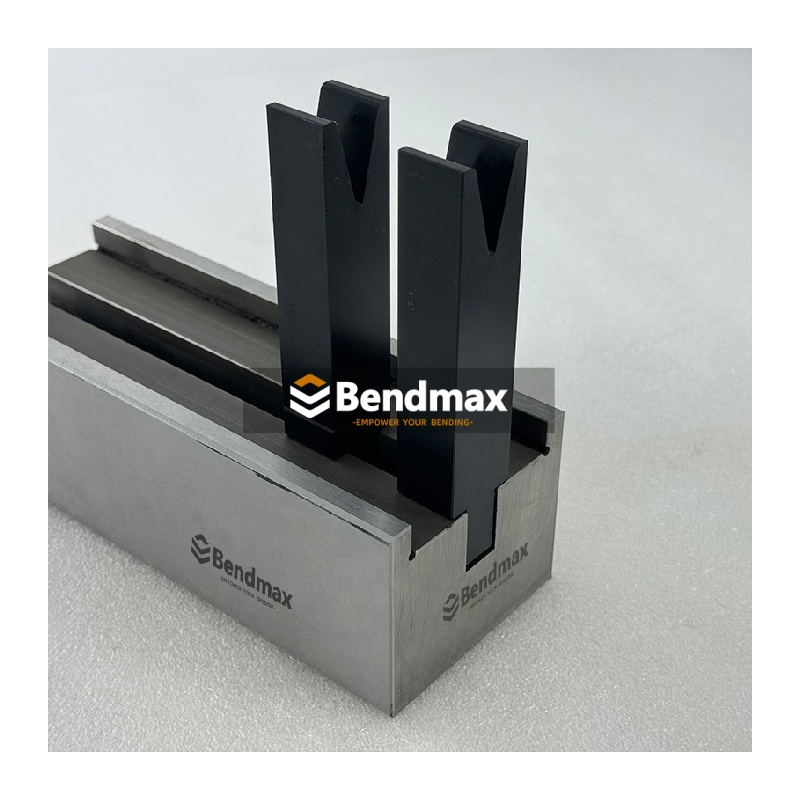

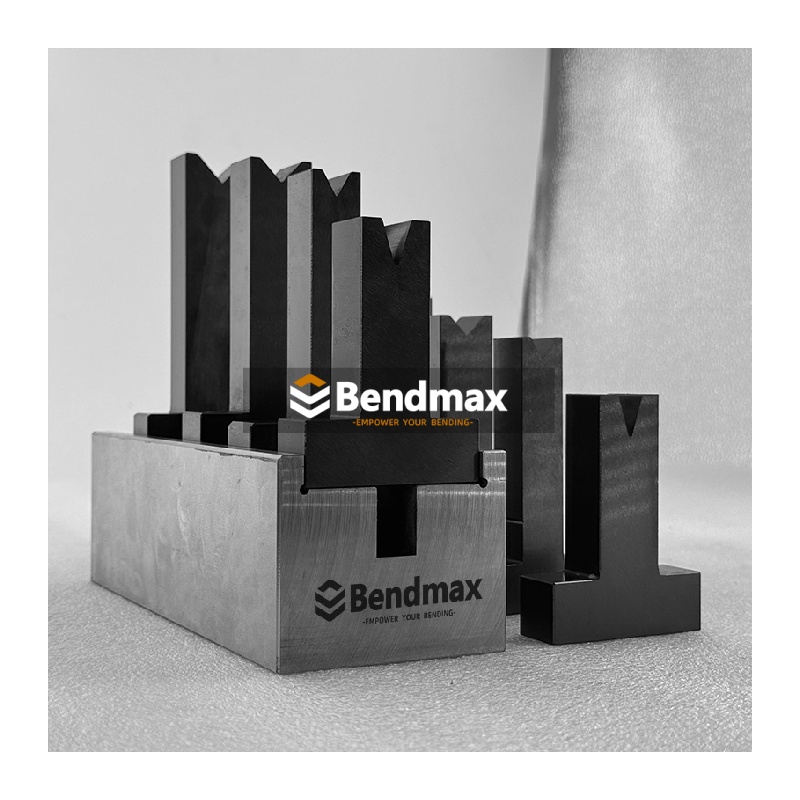

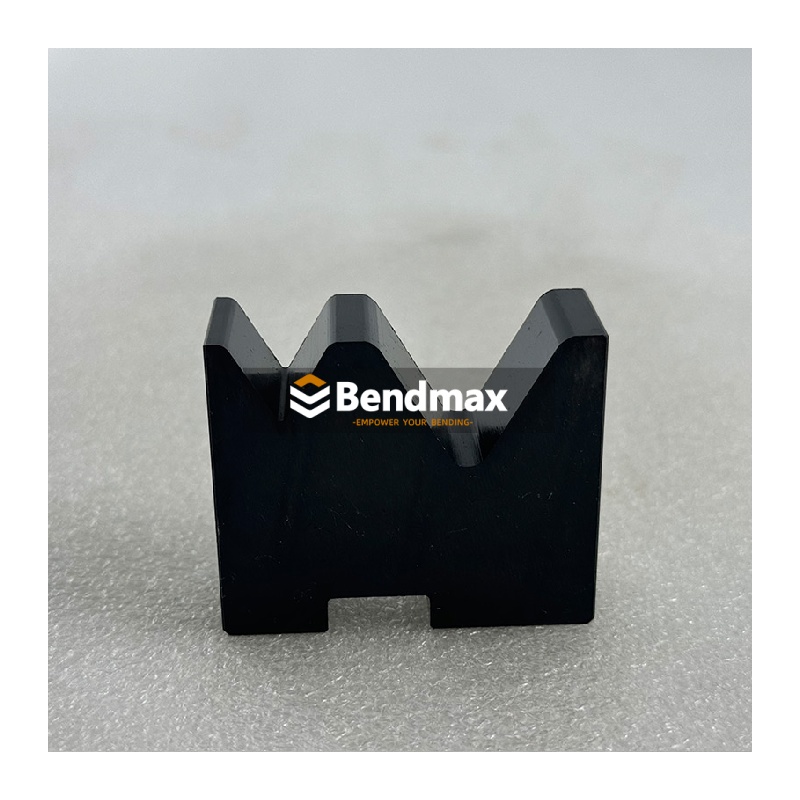

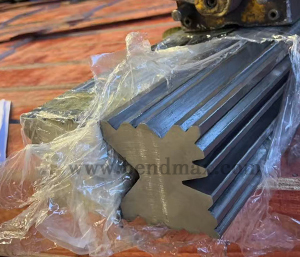

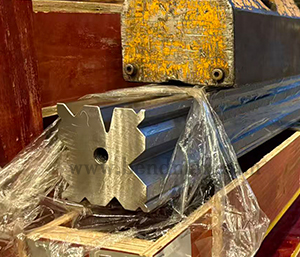

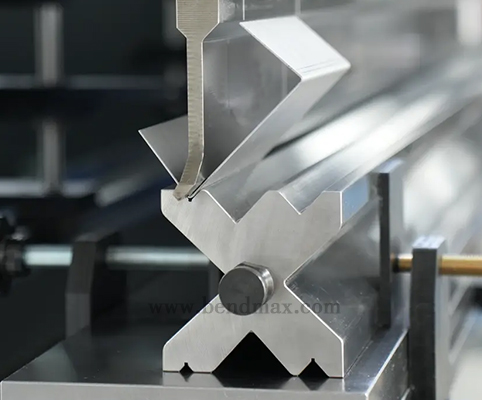

The Multi-v Press Brake Lower Die is a highly flexible press brake bottom die designed with multiple V-openings in a single tooling body. It allows operators to quickly select suitable V-groove sizes for different material thicknesses and bending requirements without frequent die changes.
This tooling significantly improves setup efficiency, reduces tooling inventory, and increases production flexibility in sheet metal fabrication environments handling diverse bending applications.
Multi-V dies are commonly used for air bending stainless steel, carbon steel, aluminum, and galvanized sheet materials. Different V-opening combinations help achieve accurate bending radii, stable angles, and consistent forming quality across various workpieces.
Available in multiple angle configurations such as 30°, 60°, 85°, and 86°, Multi-V dies are ideal for high-efficiency CNC press brake production and multi-purpose bending operations.
|
They are ideal for:
|
 |
 |

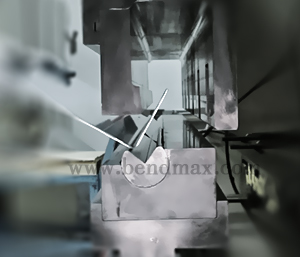

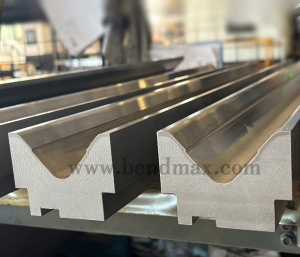

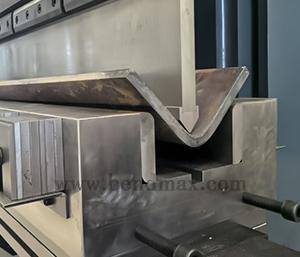

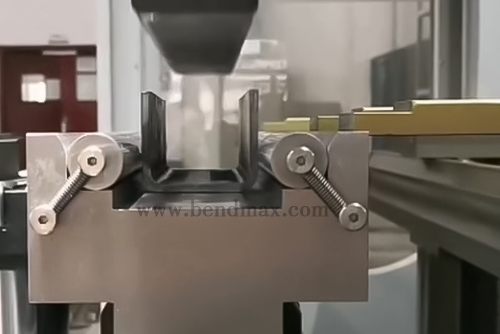

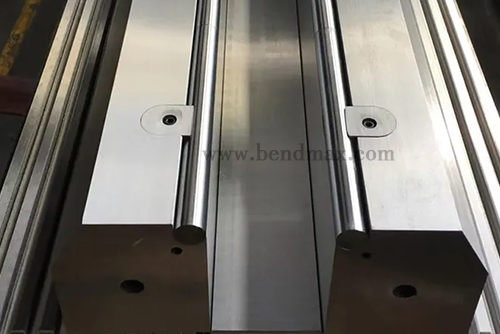

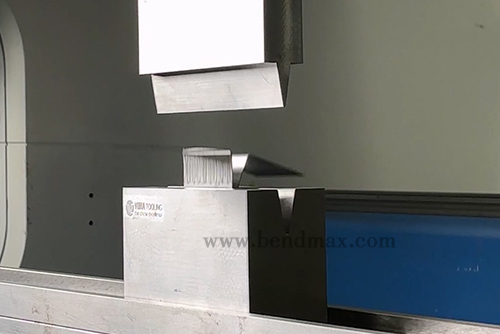

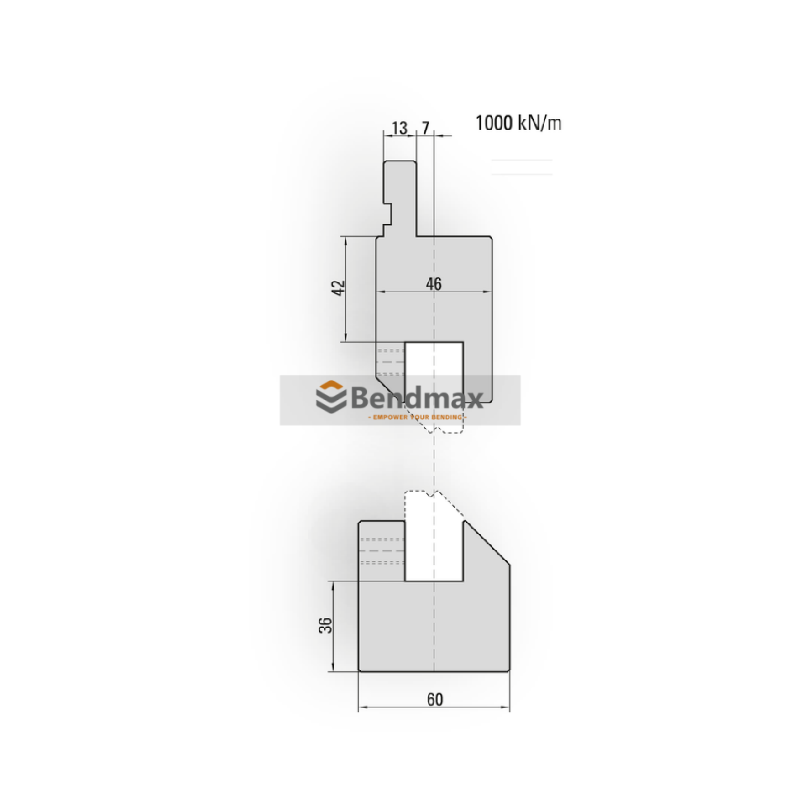

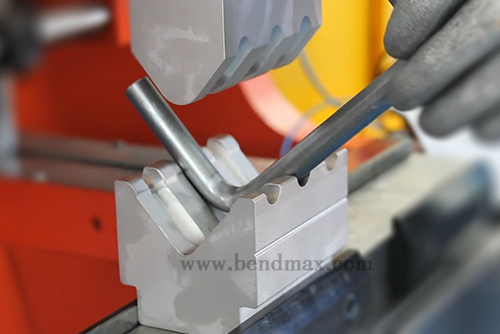

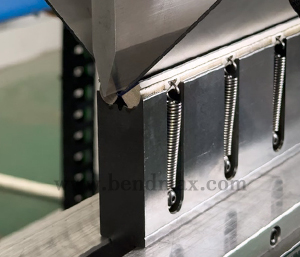

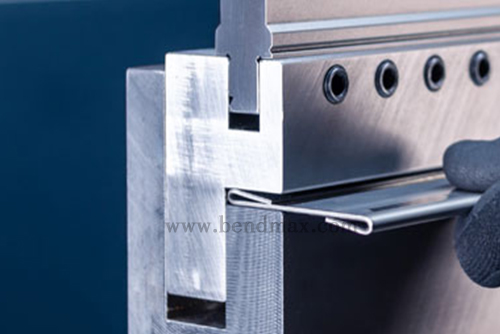

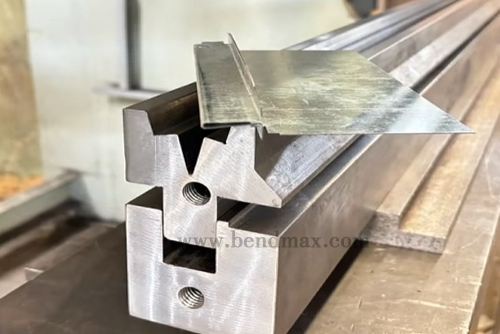

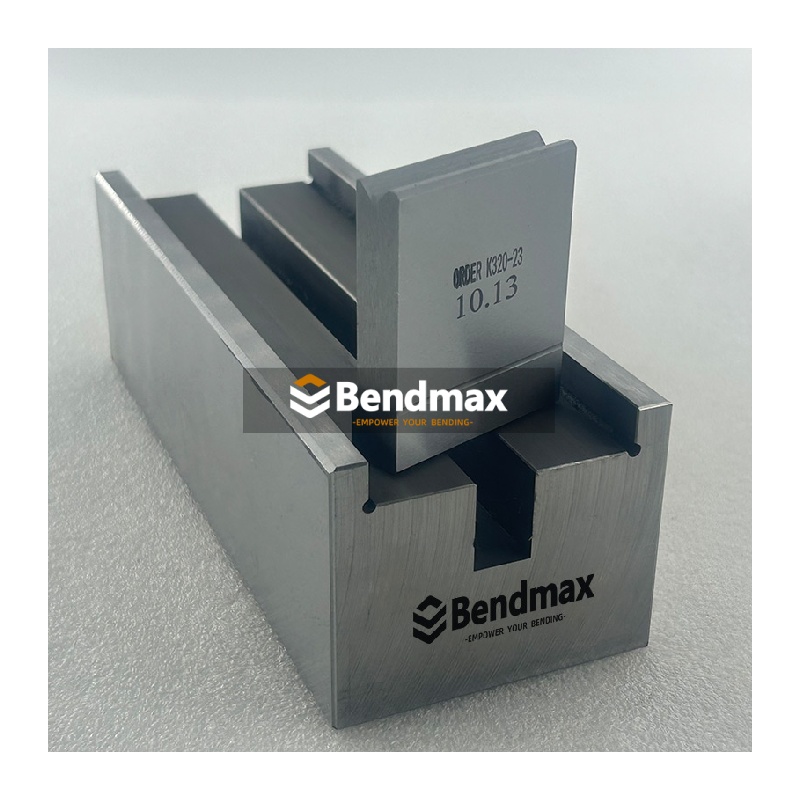

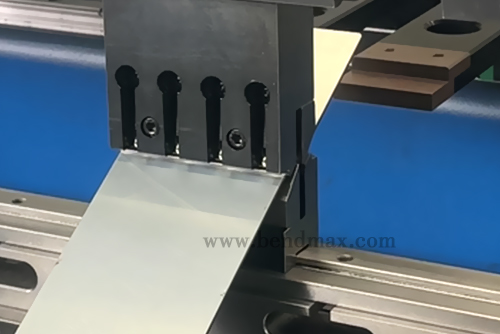

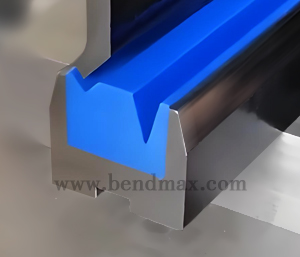

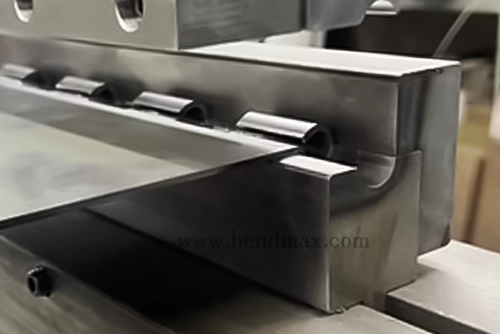

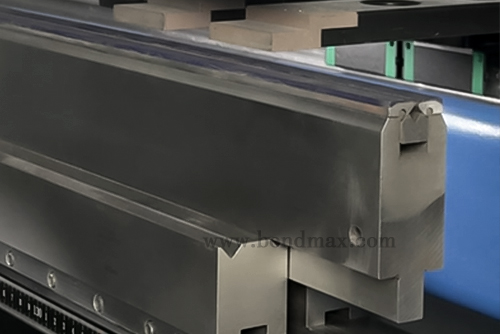

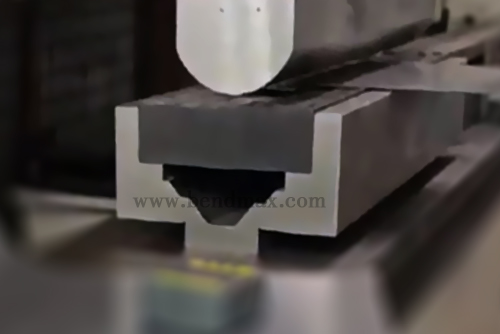

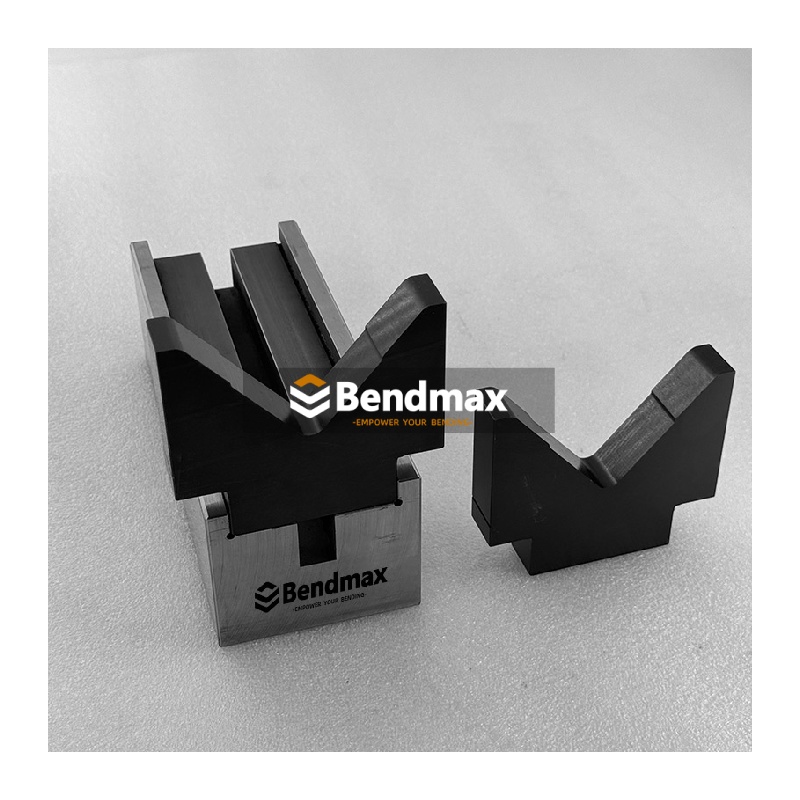

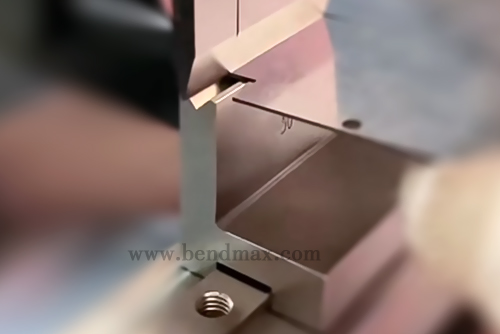

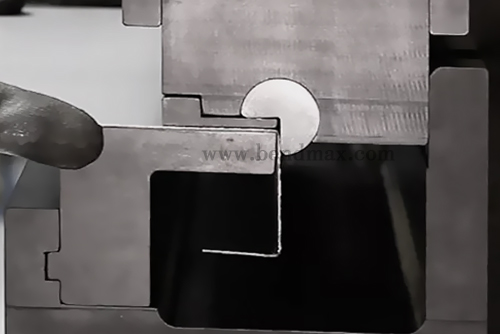

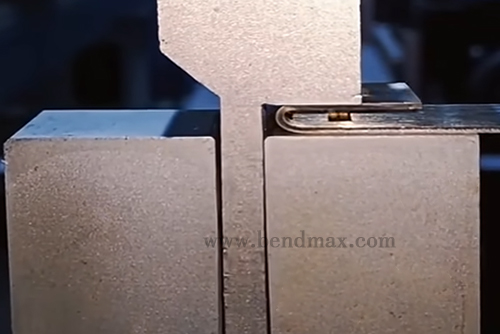

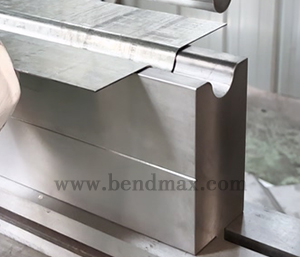

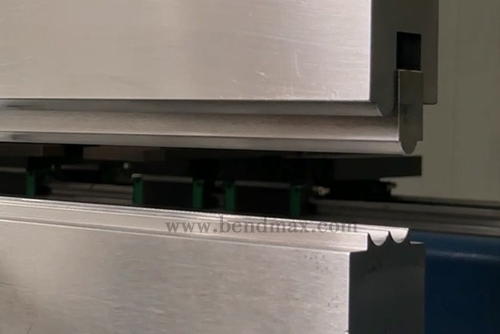

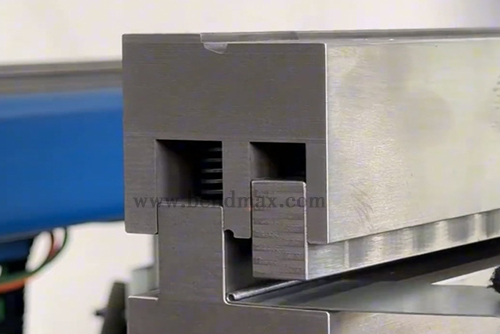

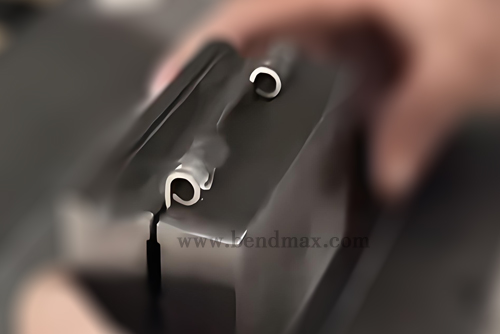

Beyond standard V-dies, many Custom Sheet Metal Bending Dies have been developed for complex bending applications.

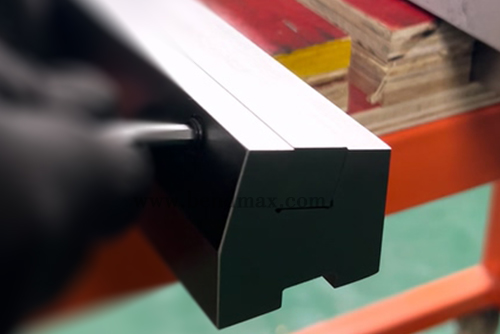

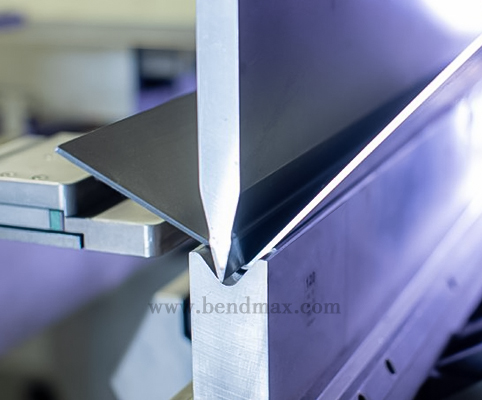

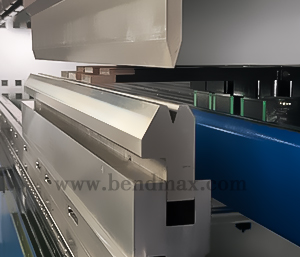

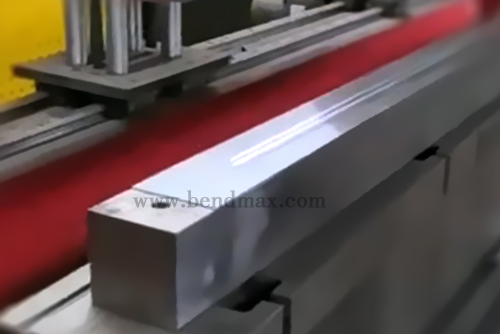

Major examples include:
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
 |
 |
 |
 |
 |
 |
|
|
|
|
|
|
Each die is designed to solve specific production challenges while improving efficiency and part consistency.
BENDMAX Official Website provides:
Compatible with:
|
|
Press brake lower dies are far more than simple V-grooves.
They directly influence:
When facing complex applications such as:
professional tooling support becomes essential.
This article mainly focuses on press brake lower dies.

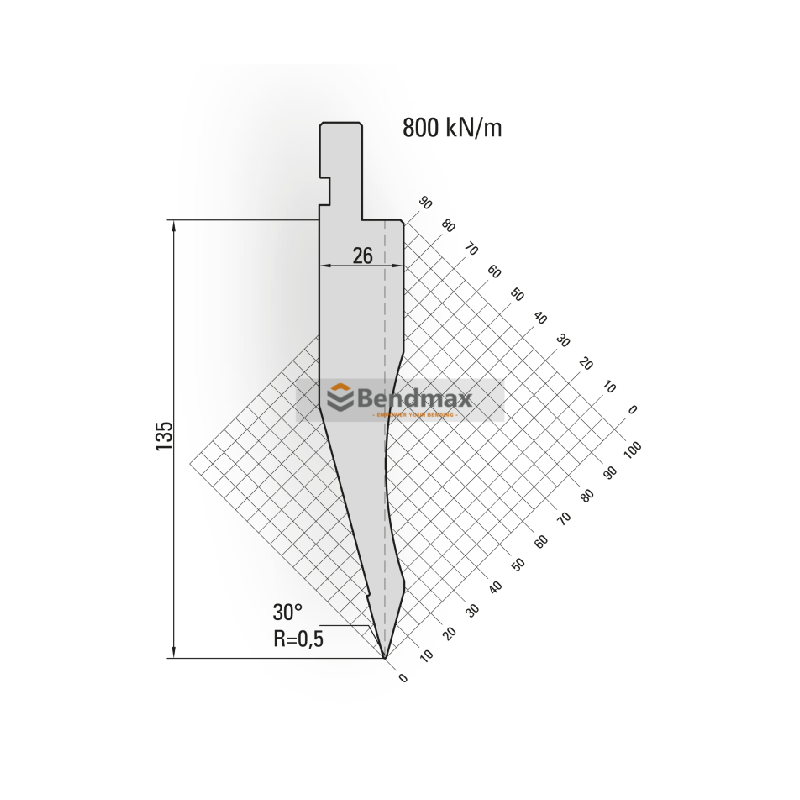

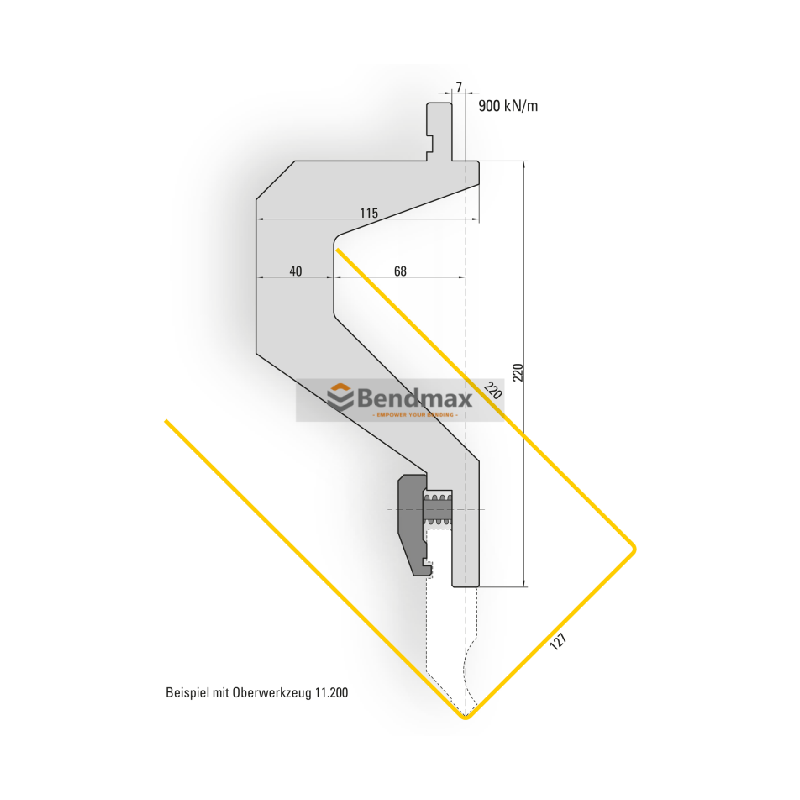

However, other components are equally important, including:
You can explore more professional press brake knowledge through related articles on our website.
