Exploring Mark-Free Bending in Press Brake Workpieces
In modern sheet metal fabrication, surface quality is becoming just as important as bending accuracy. Industries such as elevator manufacturing, kitchen equipment, architectural decoration, consumer electronics, and automotive interiors all require flawless surfaces without scratches, pressure marks, or die indentations.
However, traditional press brake bending often leaves visible bending marks on stainless steel, aluminum, coated sheets, mirror-finish metals, and painted materials. These defects increase rework costs and reduce product value.
To solve this problem and prevent bending marks on sheet metal, manufacturers are increasingly adopting advanced no mark press brake tooling solutions. This article explains the most effective methods for achieving flawless results while maintaining bending precision and productivity.
Before selecting a solution, it is important to understand why bending marks occur.
During the bending process, the sheet metal slides and presses against the V die surface under high pressure. Friction, concentrated force, and poor die surface conditions can create:
These problems are especially visible on:
The key to mark-free bending is reducing friction and distributing pressure evenly during forming.
One of the simplest methods is using a protective no-mark film between the sheet metal and the lower die.
The film acts as a protective barrier that absorbs friction during bending and prevents direct metal-to-metal contact.

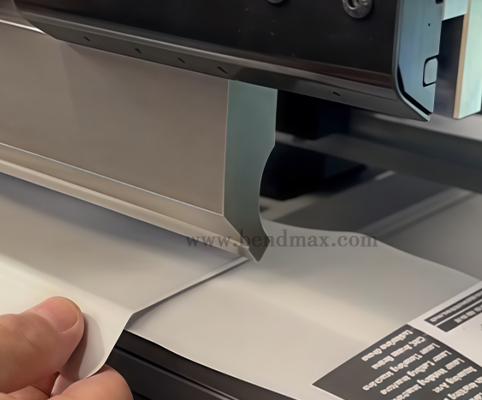

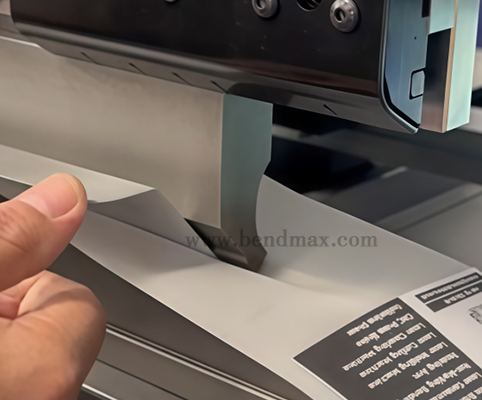

A flexible protective foil is inserted between the workpiece and the V die. During bending, the film moves together with the sheet, reducing scratching and indentation.

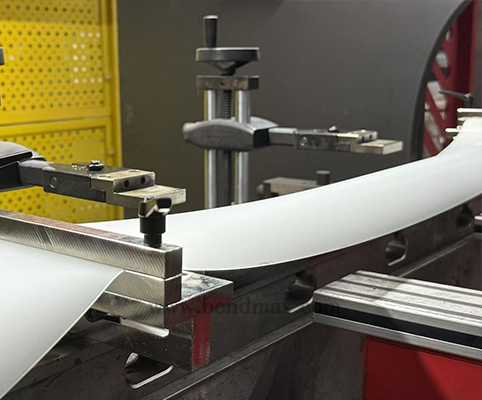

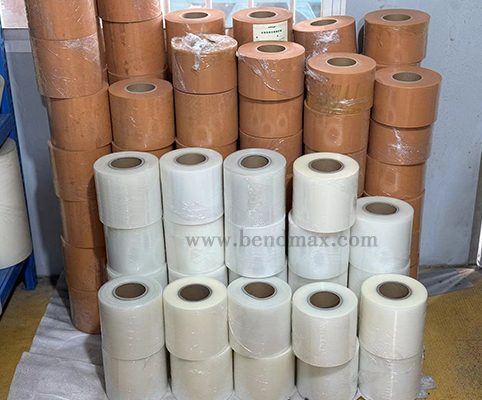

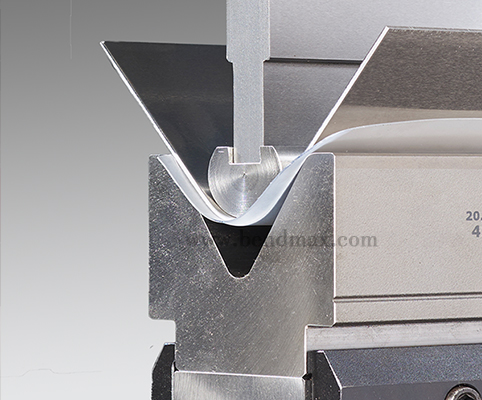

Protective film for bending operations press brake

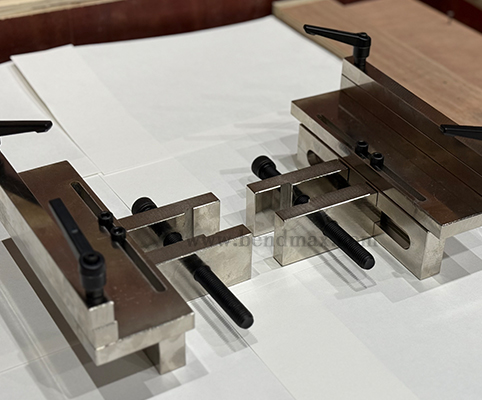

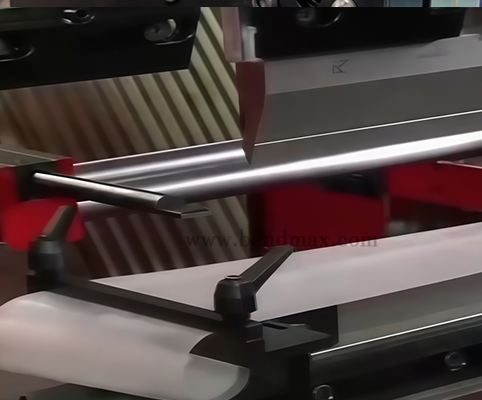

Protective Film Holder and Positioner

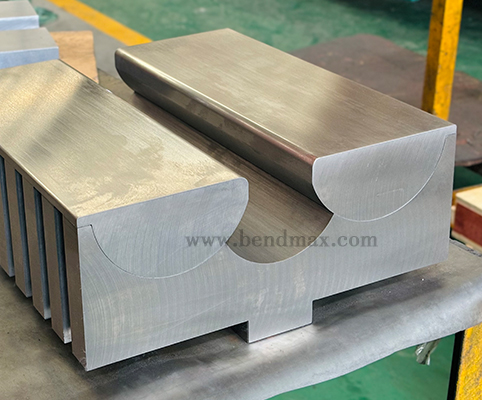

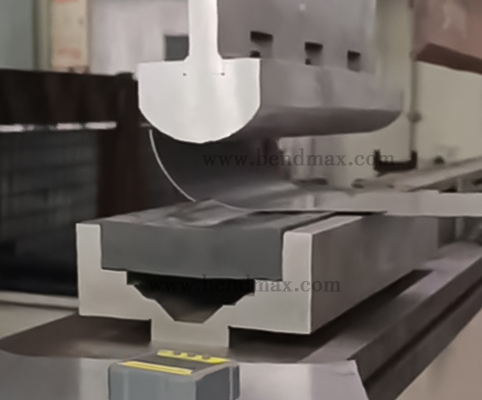

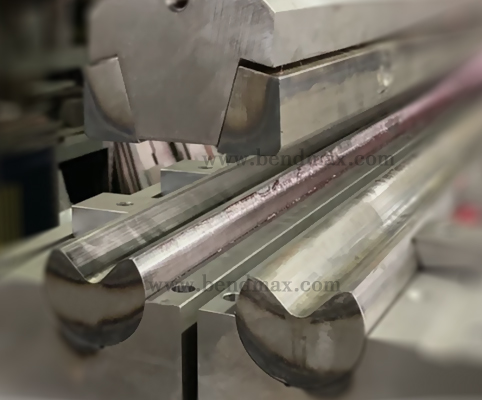

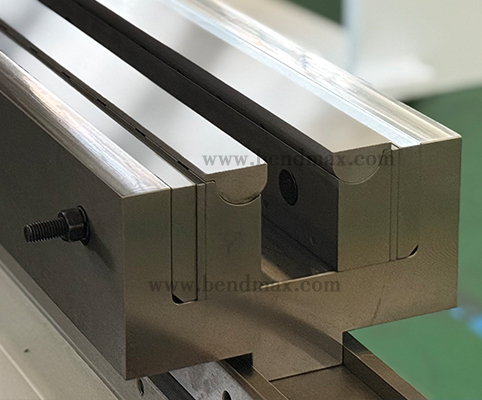

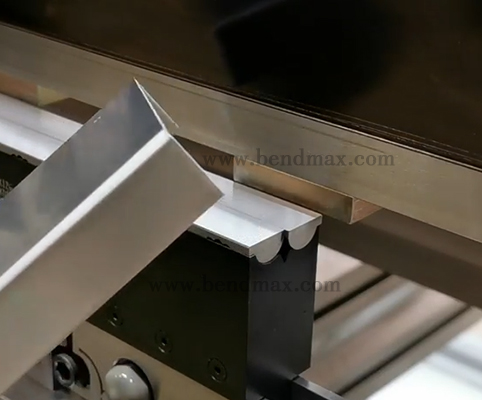

Rotary bending dies are among the most advanced solutions for scratch-free bending.

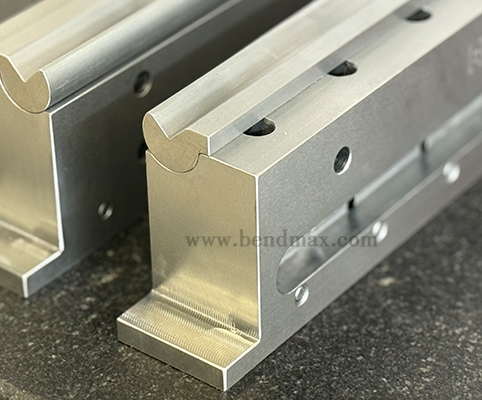

The use of Bendmax Rotabend bottom tools helps reduce marking because the hardened rotor wings rotate during bending instead of dragging across the sheet surface.
These dies feature a rotating flap mechanism in the lower die. As the punch presses the sheet into position, the flap rotates to maintain surface contact without sliding friction.
Why Rotary Dies Work Better: Traditional V dies create sliding friction. Rotary dies convert sliding movement into rotational movement, significantly reducing surface damage.

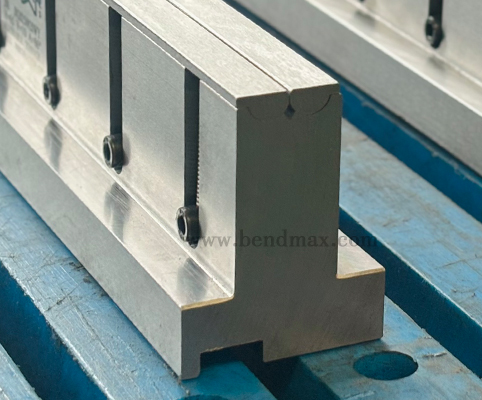

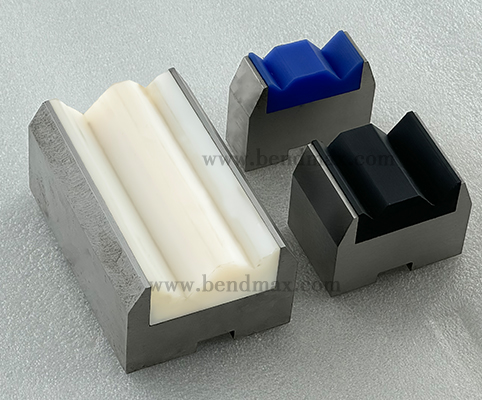

Nylon insert no-mark dies use replaceable nylon materials embedded into the contact area of the lower die. Because nylon has high elasticity and a very low friction coefficient, it greatly reduces mechanical marks on the sheet surface.
Structure: The nylon insert maintains the same V opening geometry as standard steel dies while adding a softer contact surface.

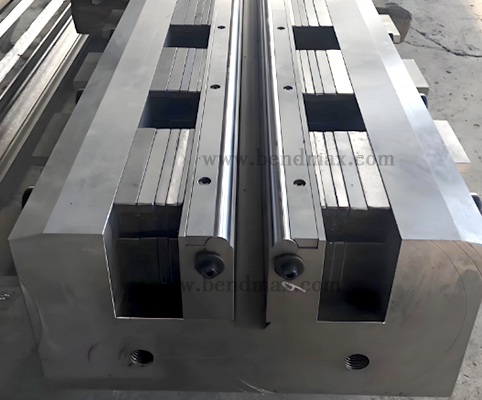

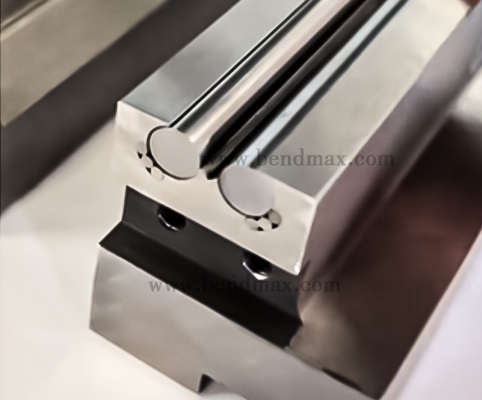

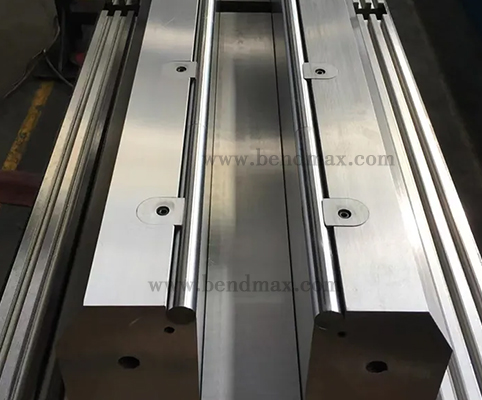

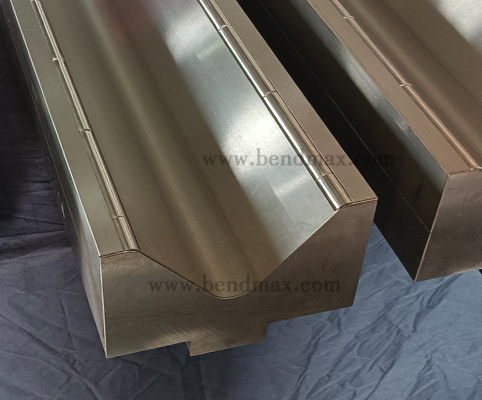

Roller-type no-mark (mark-free) dies / Free-mark dies with Roller inside use rotating hard alloy rollers integrated into the lower die.
As bending occurs, the rollers rotate synchronously with the sheet movement. This transforms sliding friction into rolling friction, dramatically reducing scratches and pressure marks.

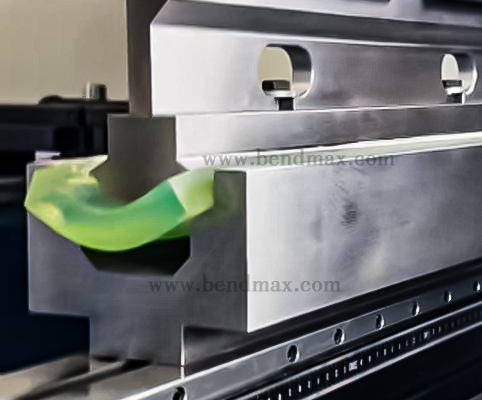

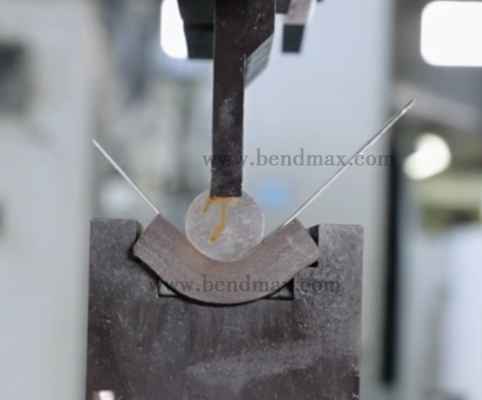

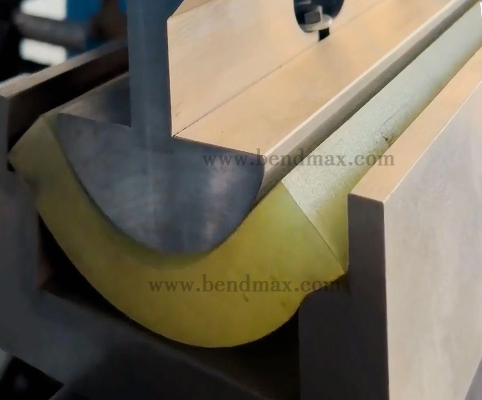

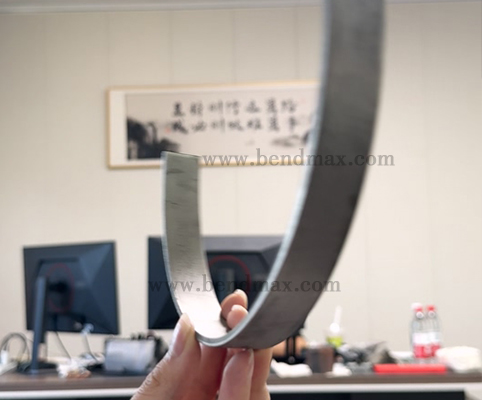

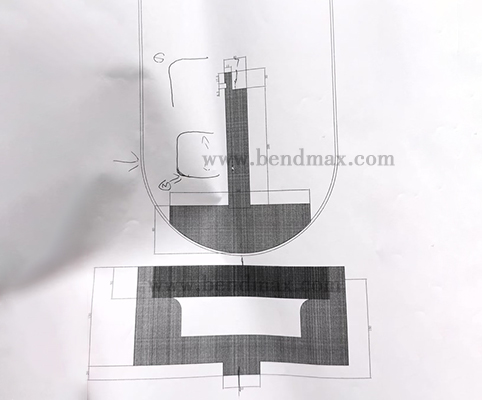

Polyurethane press brake tooling uses soft elastic inserts to cushion the sheet during bending. These inserts distribute bending pressure evenly and prevent direct hard-contact marking.
Soft contact inserts may be made from Polyurethane, Nylon, or Rubber-based materials. Polyurethane inserts are especially suitable for bending radiused profiles and delicate decorative materials.

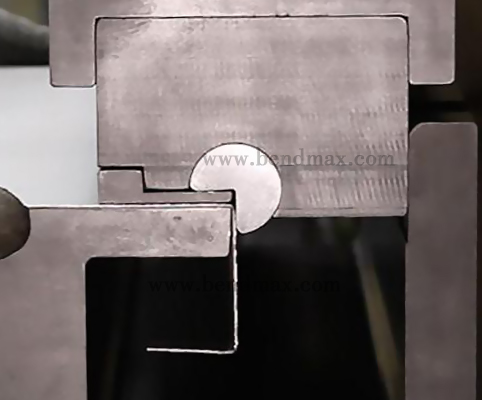

Custom wiping bending

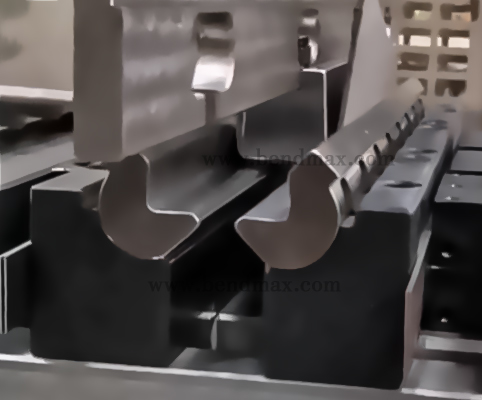

Custom U channel bending
Custom channel bending
For complex geometries or highly sensitive surfaces, customized no-mark tooling is often the best solution.
These tools are specifically designed according to: material type, material thickness, bend radius, surface finish requirements, product geometry, and production volume.
Custom tooling can combine: rotary structures, polyurethane inserts, roller systems, special surface coatings, and multi-stage bending structures.
Modern no-mark press brake tooling offers significant benefits in manufacturing efficiency, quality control, and cost reduction.
Prevents scratches, dents, and pressure marks on sensitive materials.
Fewer surface defects mean lower rejection rates and more stable production quality.
Suitable for:
Replaceable inserts extend the overall service life of the tooling system.
Reduces the need for protective films and secondary polishing operations.
Selecting the correct mark-free bending solution depends on several technical factors.
Different finishes require different levels of protection (Mirror finish, Brushed finish, Painted surfaces, Coated materials). The more sensitive the surface, the softer and smoother the tooling contact must be.
Thicker or high-strength materials require stronger insert systems to maintain angle precision. Soft insert systems may deform under excessive tonnage.
Proper matching between punch radius, V opening, material thickness, and bending angle is essential for maintaining bend consistency and preventing material deformation.
Complex shapes such as deep boxes, large-radius bends, U-shaped profiles, and multi-step bends often require specialized no-mark tooling structures.
There is no single solution suitable for every bending application.
| Solution | Surface Protection | Durability | Cost | Best Application |
|---|---|---|---|---|
| No-Mark Film | Medium | Low | Low | Temporary protection |
| Rotary Dies | Excellent | High | Medium-High | Stainless decorative panels |
| Nylon Inserts | Good | Medium | Medium | General cosmetic bending |
| Roller Dies | Excellent | High | High | Ultra-thin precision sheets |
| Polyurethane Dies | Best | Medium-Low | Medium | Mirror-finish materials |
| Custom Tooling | Maximum | Depends on design | High | Complex high-end applications |

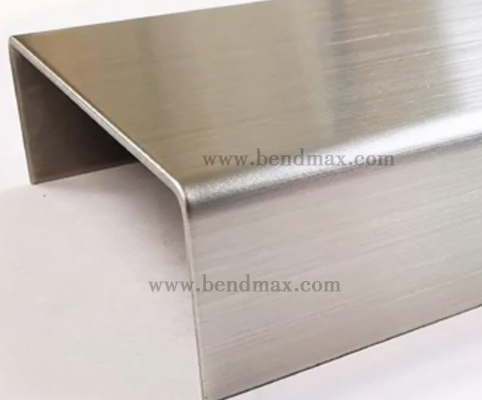

As customer expectations for appearance quality continue to rise, mastering scratch free sheet metal bending is becoming a critical requirement in modern fabrication.
Choosing the correct no-mark press brake tooling can:
Whether you are bending stainless steel elevator panels, mirror-finish aluminum, or decorative sheet metal, investing in the right no-mark bending solution will significantly improve both product quality and production efficiency.
