Angle Inconsistency in Long-Part Bending? Bendmax Manual Crowning System Solves Press Brake Deflection Accurately

11/28/2025 When bending long plates, a common problem is the bending machine sinking in the middle and tilting upwards at both ends, especially when processing longer plates.

Angle Inconsistency in Long-Part Bending? Bendmax Manual Crowning System Solves Press Brake Deflection Accurately

The Best Choice for Angle Consistency: Benefits of Crowning Systems

When bending long plates, a common problem is the bending machine sinking in the middle and tilting upwards at both ends, especially when processing longer plates.

Recently, we encountered a customer facing this typical press brake bending deflection problem. They found that when bending a 1200mm long, 3mm thick steel plate, the angle in the middle of the bent workpiece was inconsistent with the angles at the ends, resulting in an uneven bending line and inconsistent forming. Therefore, they sought a more efficient and reliable solution from us.

There are many reasons for sinking in the middle during bending. When bending long workpieces, the force distribution on the bending machine is uneven, with the middle of the machine bearing greater pressure. This results in: a larger angle in the middle area and a smaller angle at both ends, leading to an uneven bending line and inconsistent forming. Without deflection compensation, traditional bending methods can hardly achieve a stable angle.

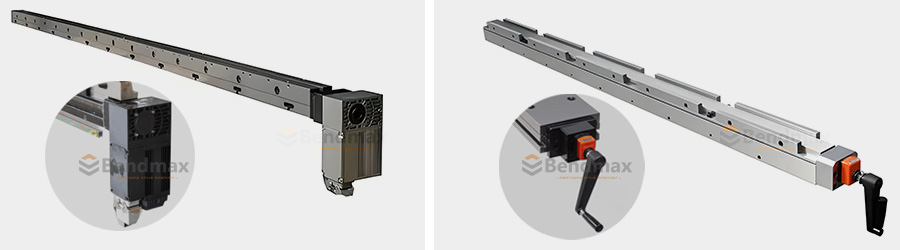

Therefore, after understanding the customer's bending needs, our team immediately recommended using a Crowning System (deflection compensation system). This system compensates for bending deformation in real time by adjusting the slight curvature of the lower die worktable, ensuring consistent angles across the entire workpiece. We offer both mechanical and hydraulic systems, but based on the customer's needs for rapid production and budget constraints, we recommended the manual Crowning System, suitable for their existing equipment. Firstly, it offers high cost-effectiveness and simple installation; secondly, it is highly compatible with different brands of press brakes (their existing equipment uses an Amazon press brake); and most importantly, it provides stable compensation accuracy, making it ideal for the routine bending of 1–3mm long plates.

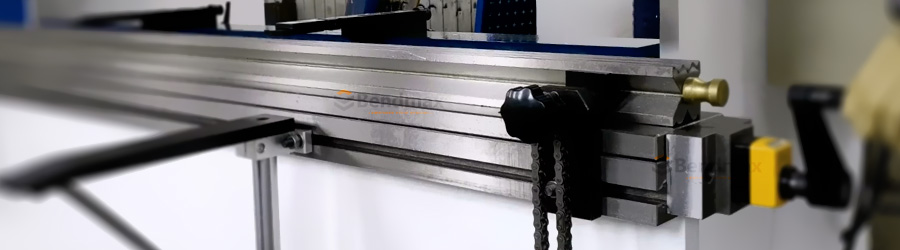

With our remote technical guidance, the customer quickly completed the installation and commissioning of the Manual Crowning System.

After being put into production, the customer reported: "The problem of mid-bending sagging is completely eliminated, and the angles of 1200mm workpieces are finally consistent." After using the Crowning System, the customer's bending angles are stable, efficiency has improved, and there is no longer a need for repeated adjustments to the bending sequence or manual correction.

For efficiently improving the bending quality of long workpieces, a Crowning System is the best choice. This case study once again proves that for bending tasks involving long plates, thick plates, and high consistency requirements, a Crowning System is an indispensable solution.

Bendmax will continue to provide reliable Press Brake Tooling and Crowning Solutions to global customers, helping them solve challenging bending problems.
