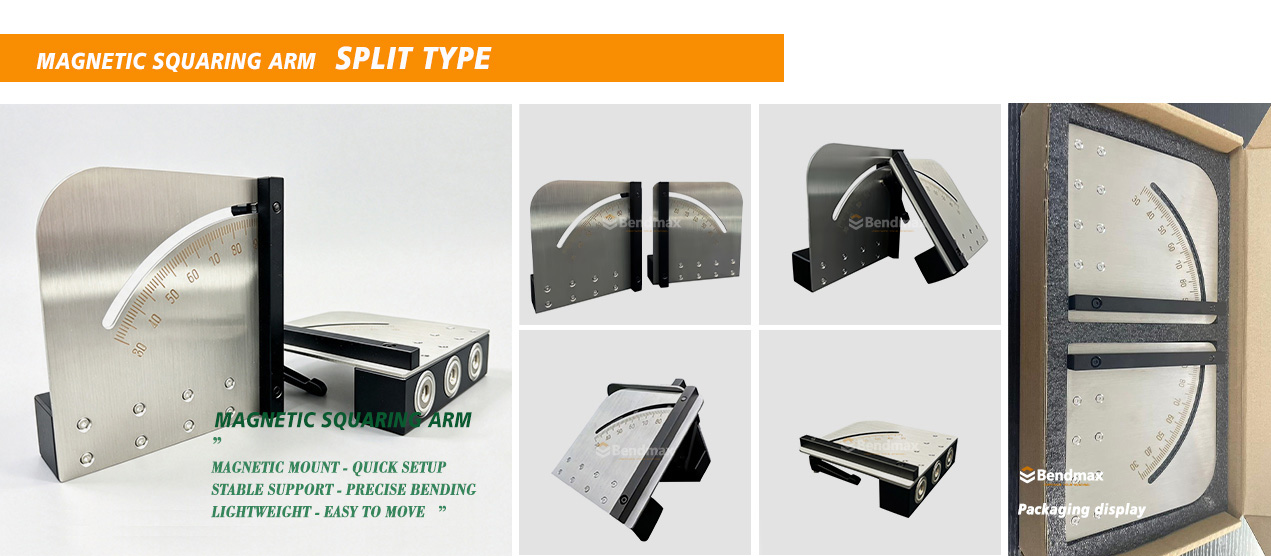

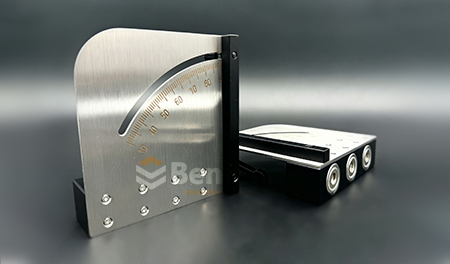

Magnetic Squaring Arm – Split Type for Press Brake | Quick & Accurate Sheet Metal Positioning

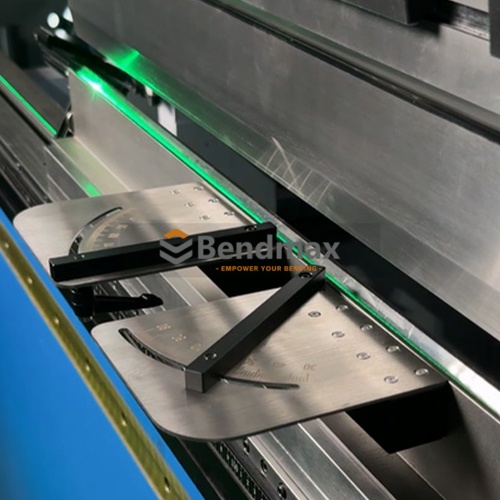

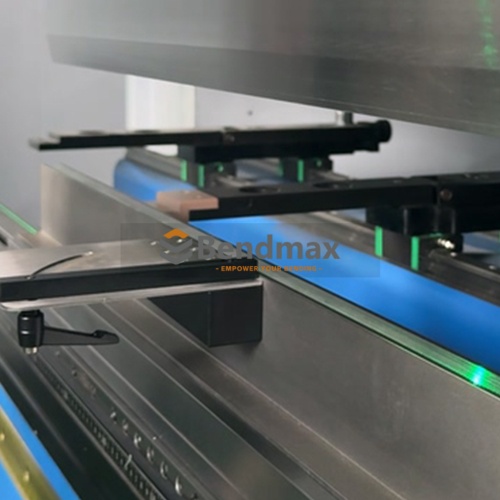

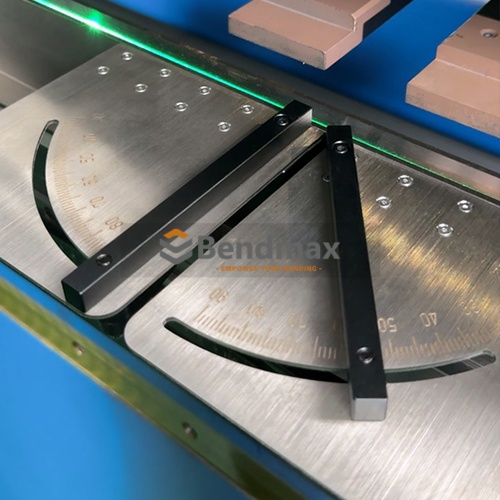

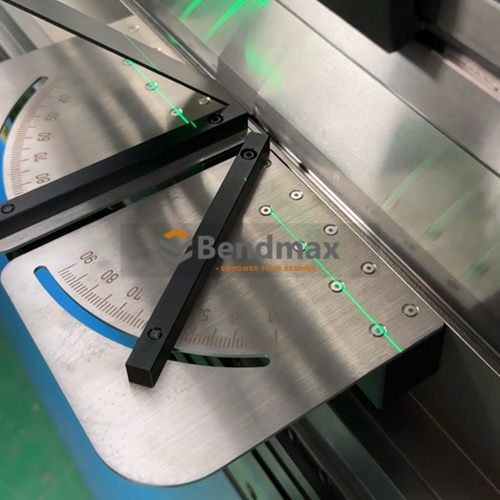

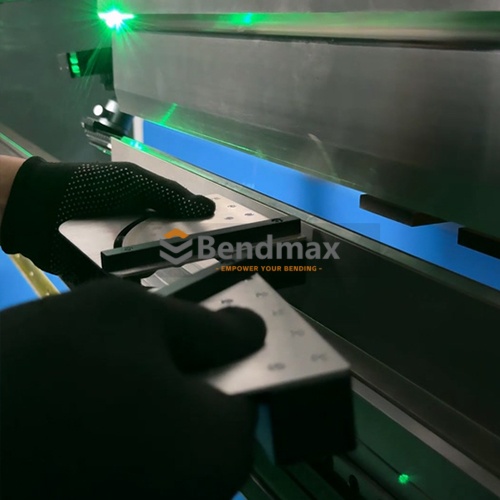

The Magnetic Squaring Arm – Split Type is a versatile press brake accessory designed to provide quick, accurate, and repeatable positioning of sheet metal workpieces. Equipped with strong magnets, the squaring arm can be securely attached to the press brake worktable or tooling, helping operators achieve precise right-angle alignment before bending.
Tooling Syetem :
Bendmax Press Brake AccessoriesTooling Style :
Magnetic Squaring ArmMagnetic Squaring Arm
- Split Type for Press Brake
▶ Click to press brake tooling Accessories Catalog
The split-type design makes the arm lightweight, portable, and easy to reposition, allowing operators to quickly adjust the positioning point for different workpieces and bending applications. No complex installation or permanent mounting is required, making it especially practical for small parts, short workpieces, and flexible production.
Key Features
Strong Magnetic Mounting – Attaches securely to the press brake worktable or tooling.
Quick Positioning – Enables fast and accurate 90° squaring of sheet metal.
Split-Type Design – Flexible configuration for different workpiece sizes and applications.
Easy Repositioning – Quickly move and adjust the arm without complicated installation.
Lightweight & Portable – Convenient for operators to carry, install, and remove.
Improved Bending Accuracy – Helps maintain consistent workpiece positioning and bending results.
Ideal for Small Parts – Particularly suitable for small and short sheet metal components.
