Magnetic Laser Alignment Tool for Press Brakes

Hot Sale Press Brake Laser Bending Alignment Tool

Magnetic laser alignment device for sheet metal bending

Laser Bending Alignment Tool for press brake

how to aligning the punch with the bending line

The absolute necessity of aligning press brake tooling

Precision Laser Alignment Tool for Metal Bending Equipment

Magnetic Laser Alignment Tool for Press Brakes

The Press Brake Magnetic Laser Alignment Device is designed to project a clear, highly visible laser line onto sheet metal, allowing operators to accurately position complex parts that are difficult to locate with standard press brake systems. With its magnetic mounting design and precision-engineered laser module, this device significantly improves bending accuracy, setup speed, and workflow efficiency.

Tooling Syetem :
Bendmax press Laser Bending Alignment Tool

Product categories

New Products

Product Details

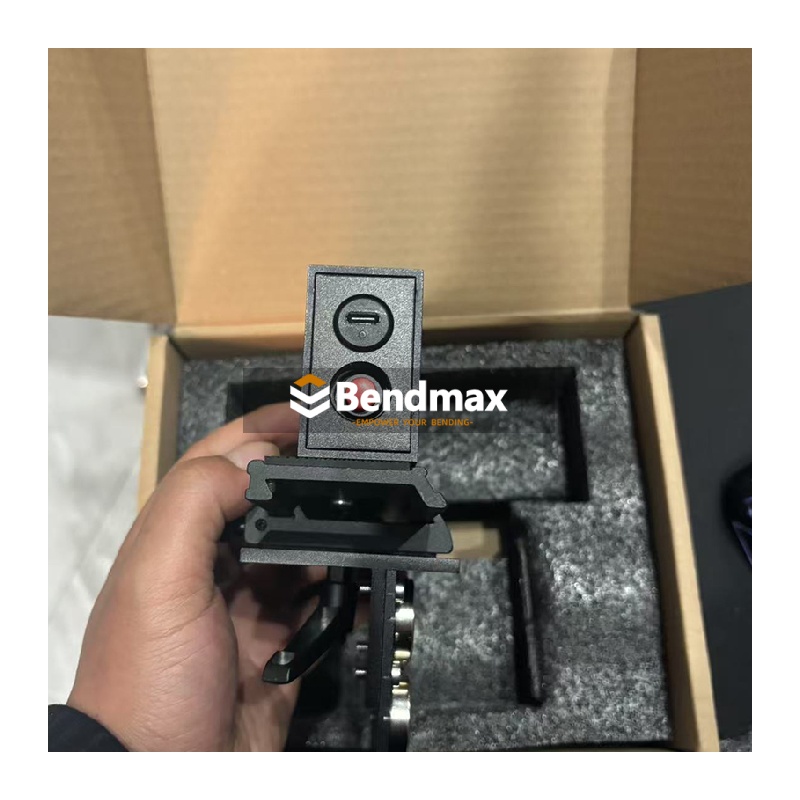

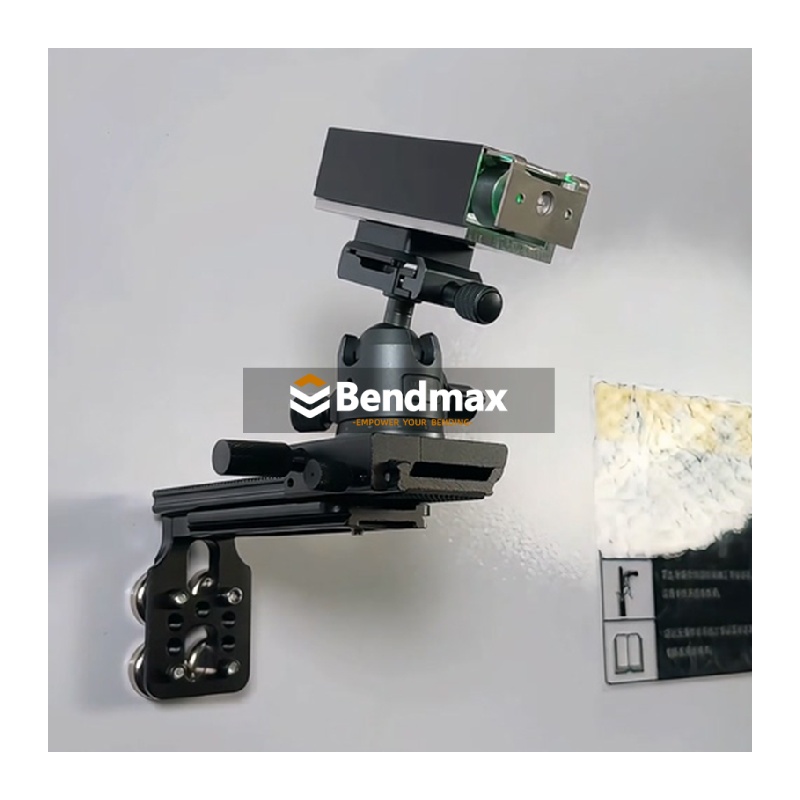

Press Brake Magnetic Laser Alignment Device

- Hot Sale Press Brake Laser Bending Alignment Tool for the popular sheet metal bending project

Superior Material Quality

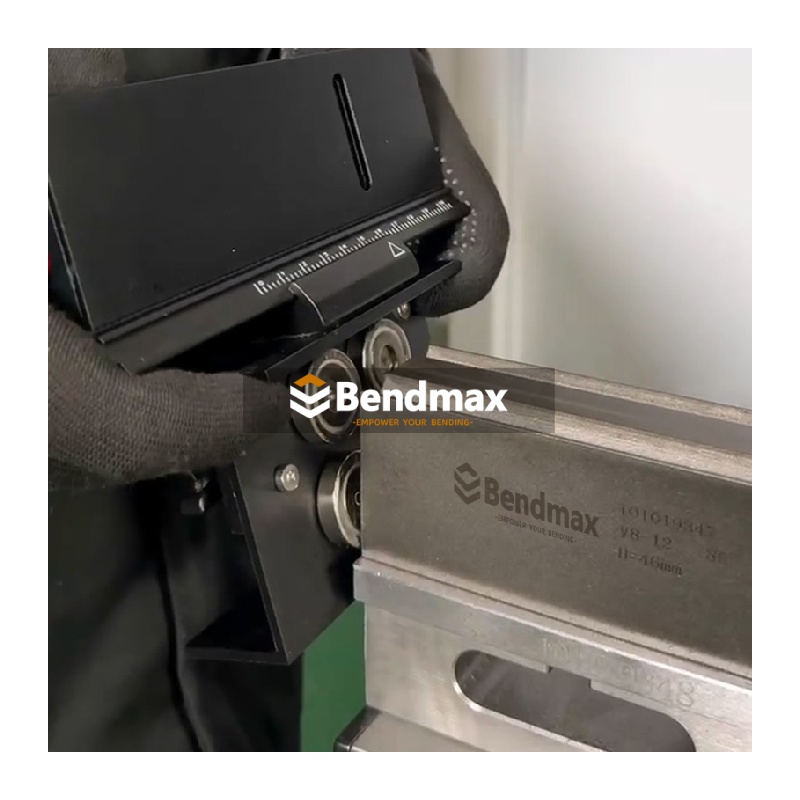

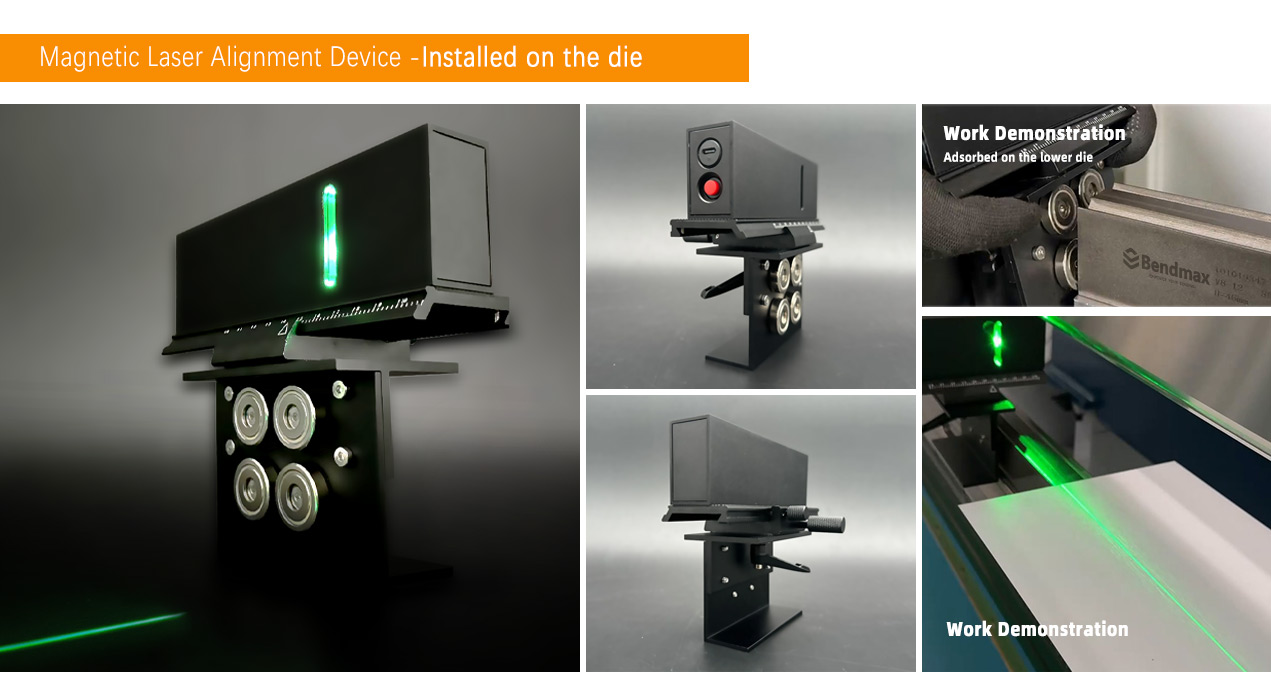

Magnetic Laser Alignment Device Installed on the die：

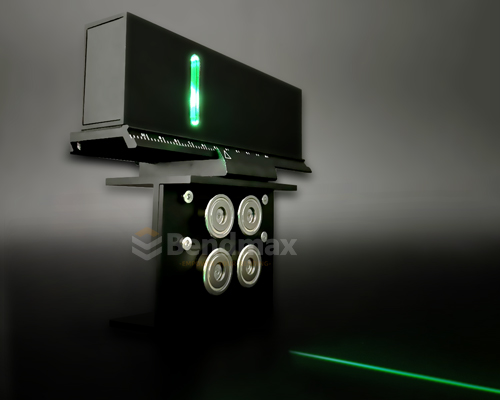

This Magnetic Laser Alignment Device can projects a laser line onto the sheet metal, clearly indicating the bending position. This helps operators align workpieces faster, reduce setup errors, and improve efficiency.

Fine Adjustment Dial:

Precision positioning improves accuracy enhances operational efficiency.

UNIQUE

1. Powerful and Reliable Laser Module

The core of the device is its high-quality green laser module, built for precision and longevity.

Key specifications include:

Operating voltage: 2.4–3.7 V

Line visibility: Up to 6 meters in low ambient light

Operating current: <280 mA

Output power: 10 mW

Wavelength: 532 nm

Lifespan: > 4000 hours with proper use

Working temperature: 10°C to 35°C

This ensures a bright, stable, and long-distance laser line ideal for any press brake setup.

2. Laser Module Can Be Purchased Separately

To reduce long-term maintenance costs, the laser module is available as an independent replacement part.

With over 4000 hours of service life, users can conveniently replace just the module without purchasing the full device again.

installation site

▶ Installed on the die

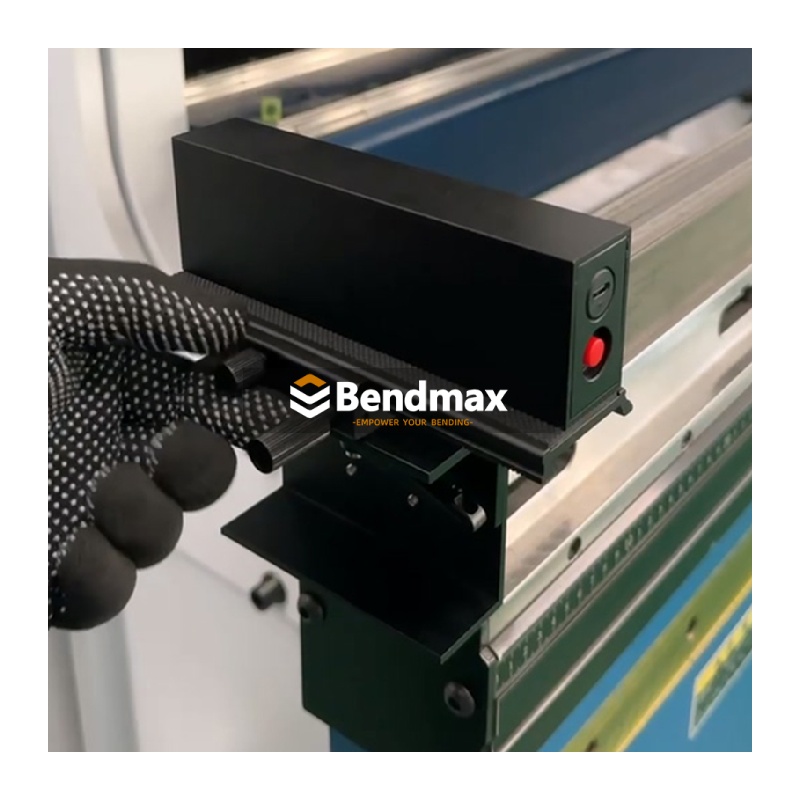

▶ Installed on the slider

Laser alignment systems

3. Easy and Quick Installation

The Magnetic Laser Alignment Device is engineered for operator convenience:

Works with 60 mm dies by default

Easily adapts to 90 mm dies by simply changing the side screws

The compact design ensures fast mounting and removal

As shown in the installation sketch, the device attaches securely without interfering with tooling operations.

4. Fast Laser Beam Centering

Fine-tuning the laser beam is effortless:

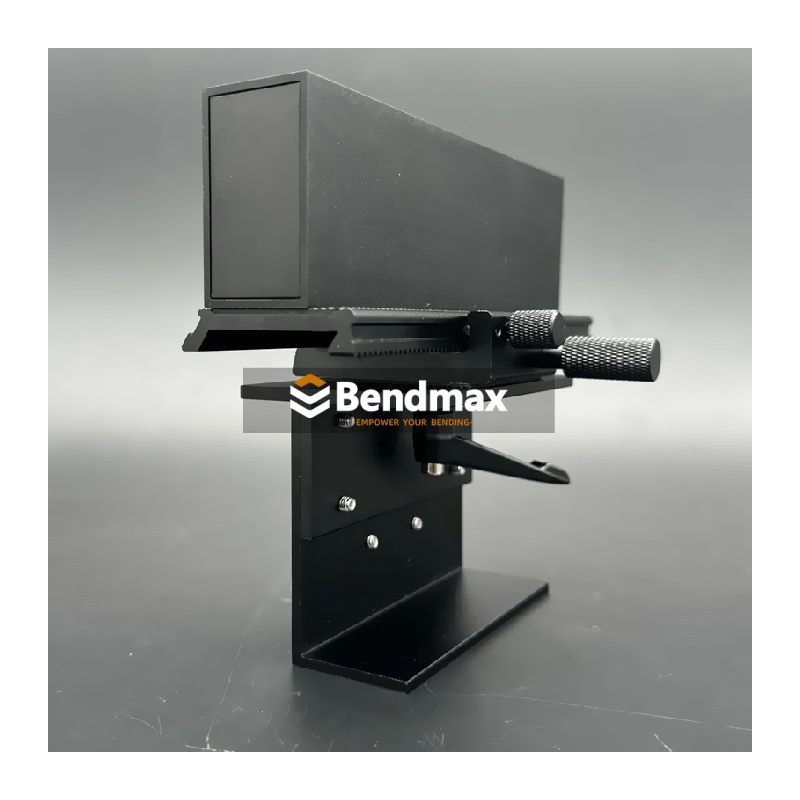

Two small adjustment handles allow precise alignment

Centering the laser with the die takes only a few seconds

This helps operators minimize setup time and start bending immediately.

5. Fully Reversible Design

The device features a reversible mounting system:

By moving the fixing handle to the opposite side

The unit can be used on the left-hand or right-hand side of the die

This ensures maximum flexibility for different bending setups and operator preferences.

6. Batteries Included for Immediate Use

Each unit is supplied with two AA 1.5V alkaline batteries, providing approx. 8 hours of continuous operation.

Users can start working right away without additional accessories.

REQUEST QUOTES

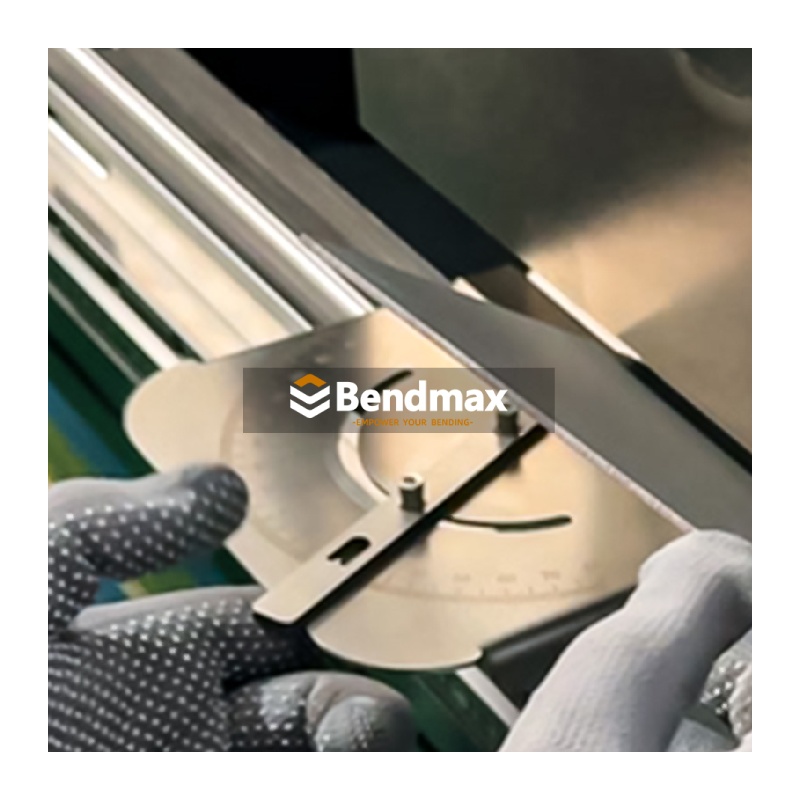

Press Brake Magnetic Squaring Arm Precision Alignment Tool for Bending and Metal Fabrication

Press Brake Alignment Tool

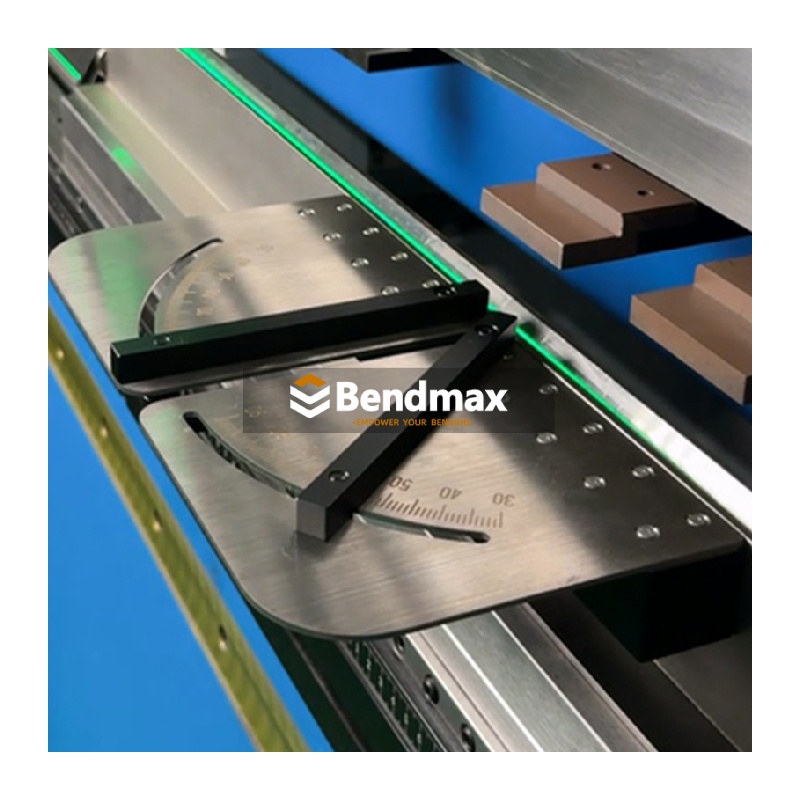

Magnetic Squaring Arm -Integrated

Request Quotes

Press Brake Alignment Tool

Magnetic Squaring Arm -Split-style

Request Quotes

Press Brake Alignment Tool

Magnetic Laser Alignment Device

Request Quotes

Press brake tooling for sale

Press Brake Laser Bending Alignment Tool

Press Brake Laser Bending Alignment Tool 01

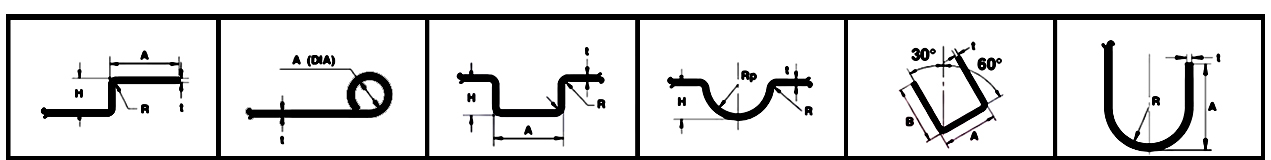

press brake tooling bending examples 02

offset bending hinging bending hat channel rib bending un-balanced u bending

press brake tooling bending examples 03

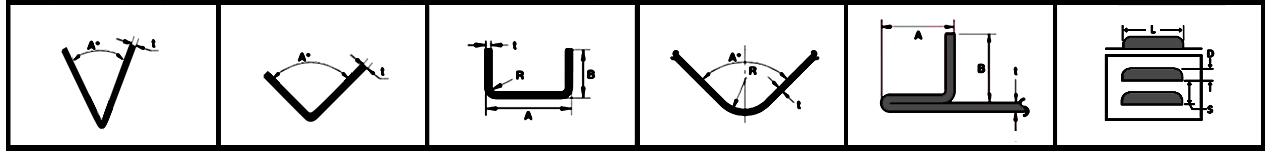

V bending 90° bending flatting bending R bending hemming bending louver bending

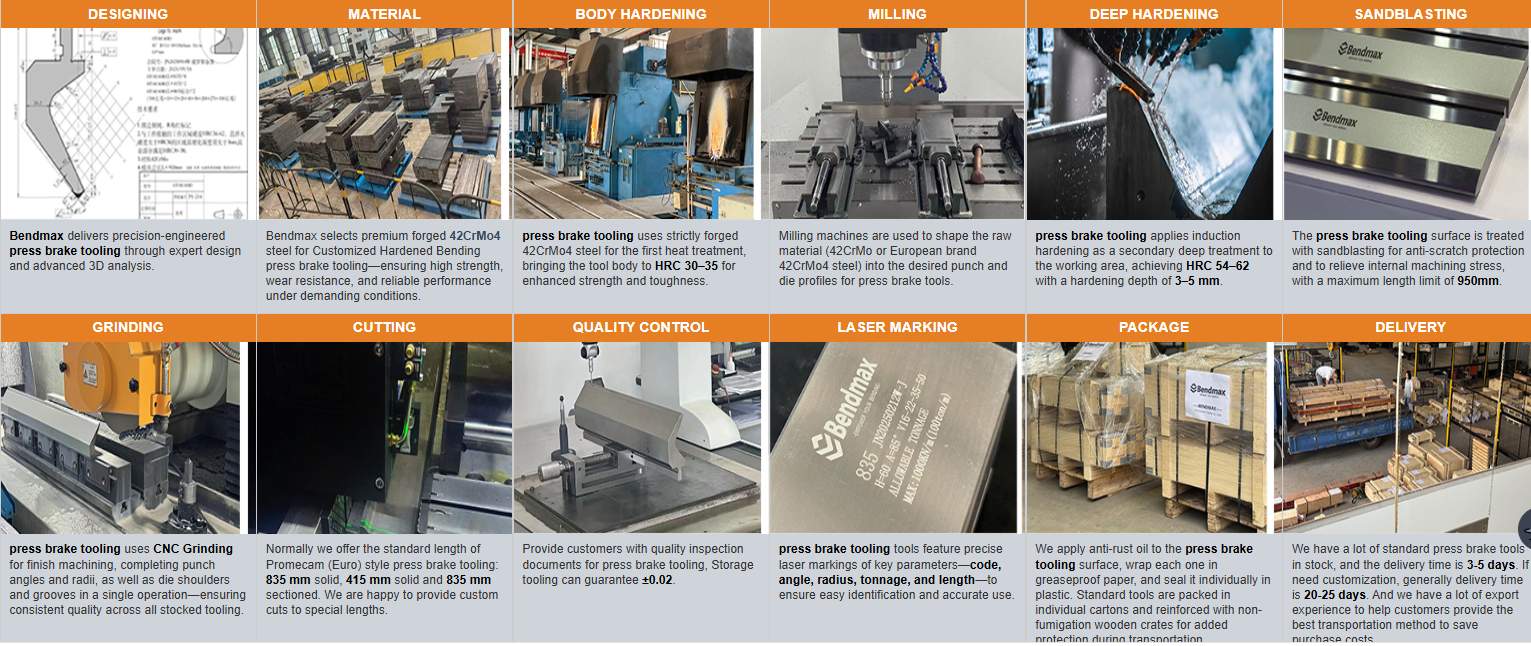

PRESS BRAKE TOOLS PROCESS 01
