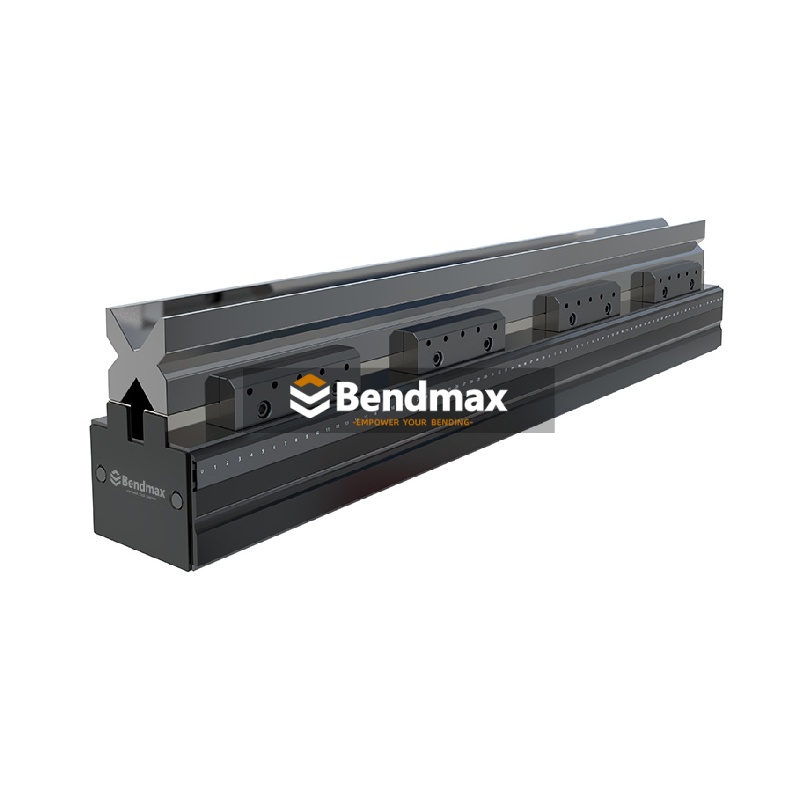

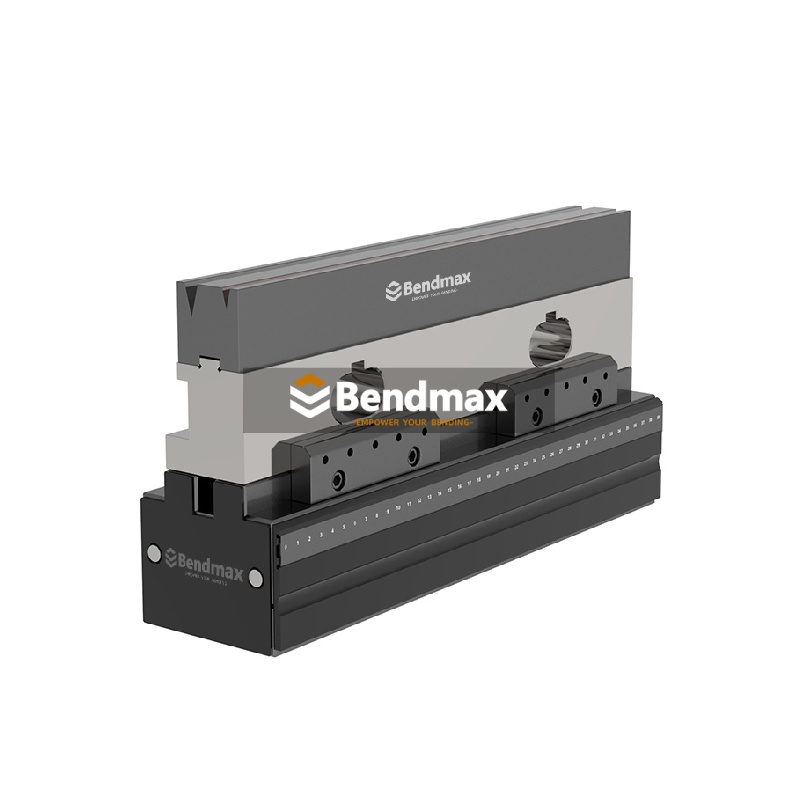

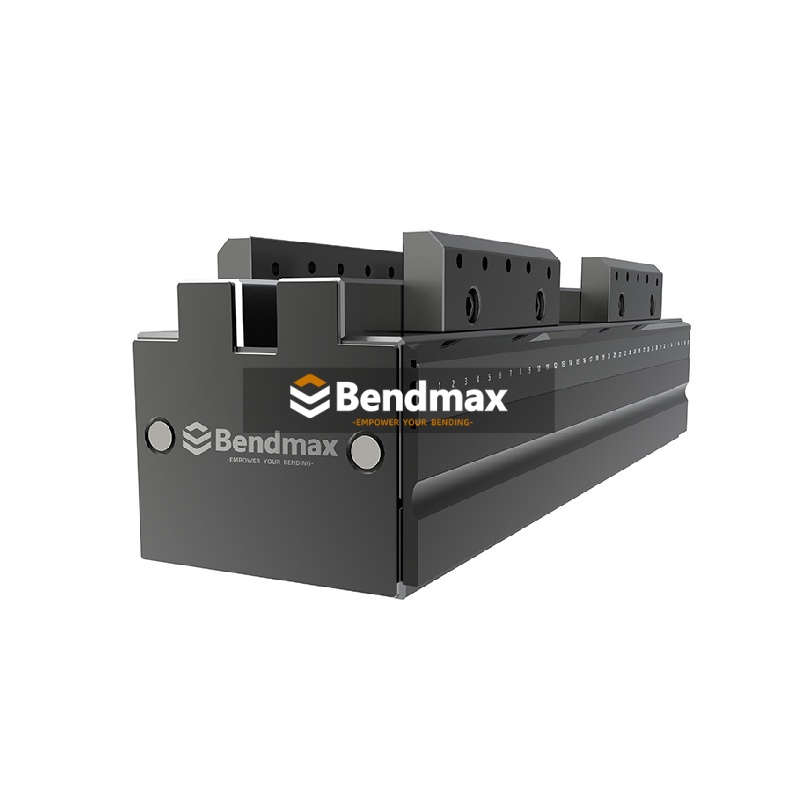

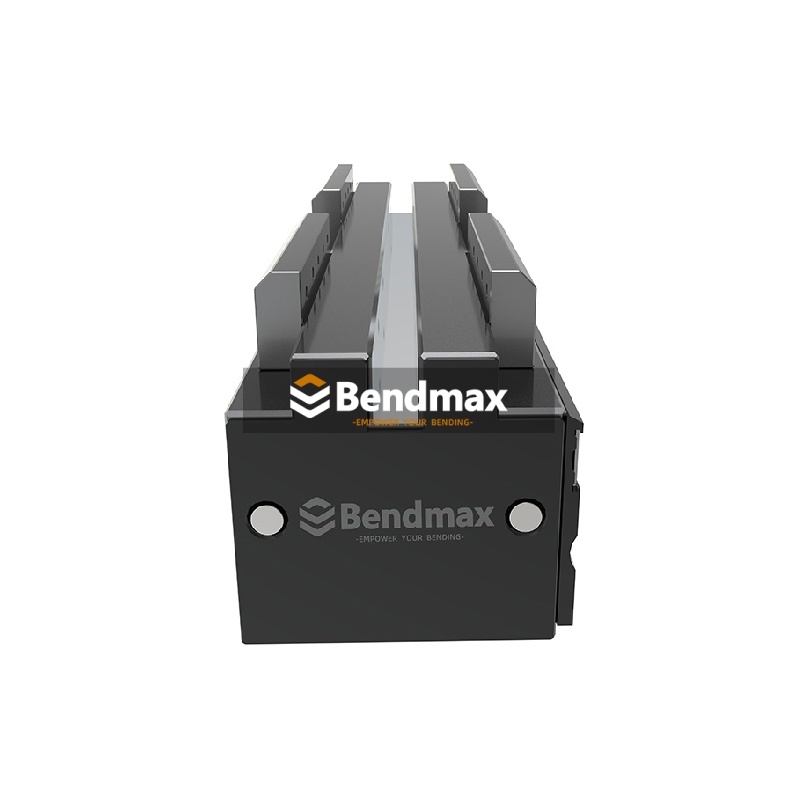

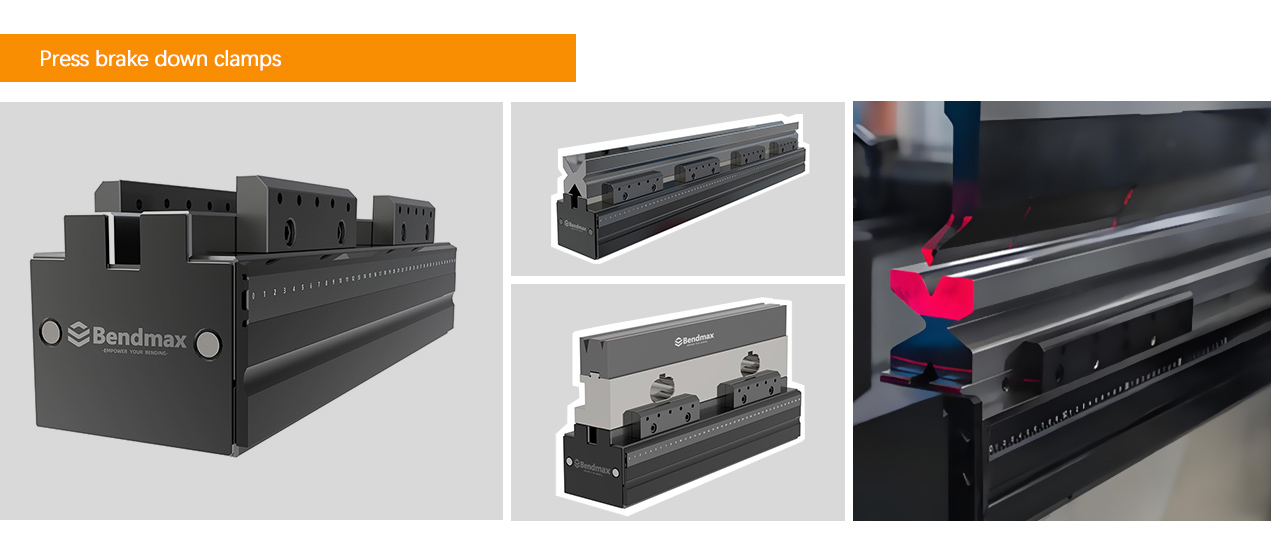

Fast, Secure and Precise Pneumatic Clamping for WILA/Trumpf-Style Press Brake Lower Tools
Designed for Efficient Lower Tooling Setup
A pneumatic lower clamping system is particularly valuable when a press brake uses different lower dies for different material thicknesses, V-openings or bending applications. Instead of relying on manual clamping bolts, pneumatic actuation allows the operator to release and secure compatible dies more efficiently.
The system can also be considered as part of a broader press brake tooling upgrade, together with suitable lower tool holders, segmented dies and crowning systems.
Industry press brake manufacturers and tooling suppliers commonly offer pneumatic, hydraulic and manual lower-tool clamping options, with the appropriate choice depending on tooling type, machine configuration and production requirements.
Key Benefits
Fast Tool Change – Pneumatic operation makes lower die installation and removal faster than conventional manual clamping.
Secure Clamping – Provides consistent clamping force to keep compatible lower tools firmly positioned during bending.
Improved Setup Efficiency – Reduces manual adjustment and tooling changeover time.
WILA/Trumpf-Style Compatibility – Designed for compatible lower tooling systems; actual fit should be confirmed according to the machine and die interface.
Production Flexibility – Suitable for frequent tooling changes and segmented lower tools.
Easy Operation – The pneumatic system can be integrated with the press brake control or operated through a suitable pneumatic control arrangement, depending on machine configuration.
Bendmax Lower Tool Clamping Solutions
Bendmax provides pneumatic, hydraulic and manual press brake clamping solutions for different tooling systems and machine configurations. If you are replacing an existing lower clamp or upgrading an older press brake, we can evaluate the machine interface and recommend a suitable solution.
For a quotation, please provide your press brake model, existing lower tooling system, table dimensions, die type and photos or drawings of the current clamping interface.
Common types
▶ Manual Tool Clamping
▶ Pneumatic Tool Clamping
▶ Hydraulic Tool Clamping
50551
Press Brake Clamp
H=60 mm，L=150 mm，W=17 mm
Request Quotes
50903
Press Brake Clamp
H=60 mm，L=150 mm，W=17 mm
Request Quotes
50905
Press Brake Clamp
H60 mm，L=150 mm，W=17 mm
Request Quotes
offset bending hinging bending hat channel rib bending un-balanced u bending
V bending 90° bending flatting bending R bending hemming bending louver bending
