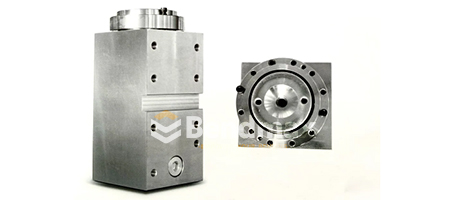

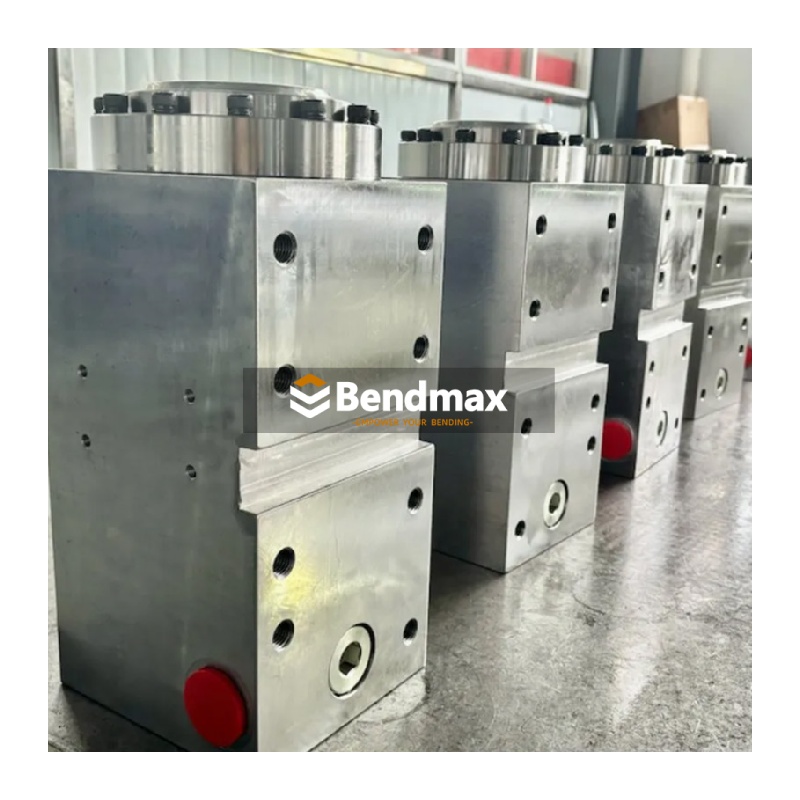

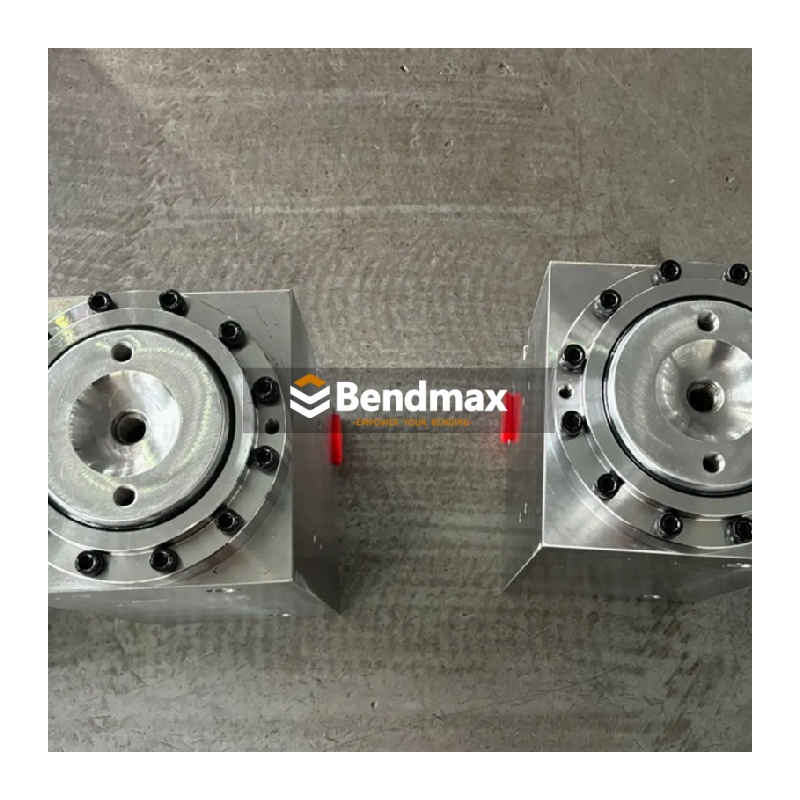

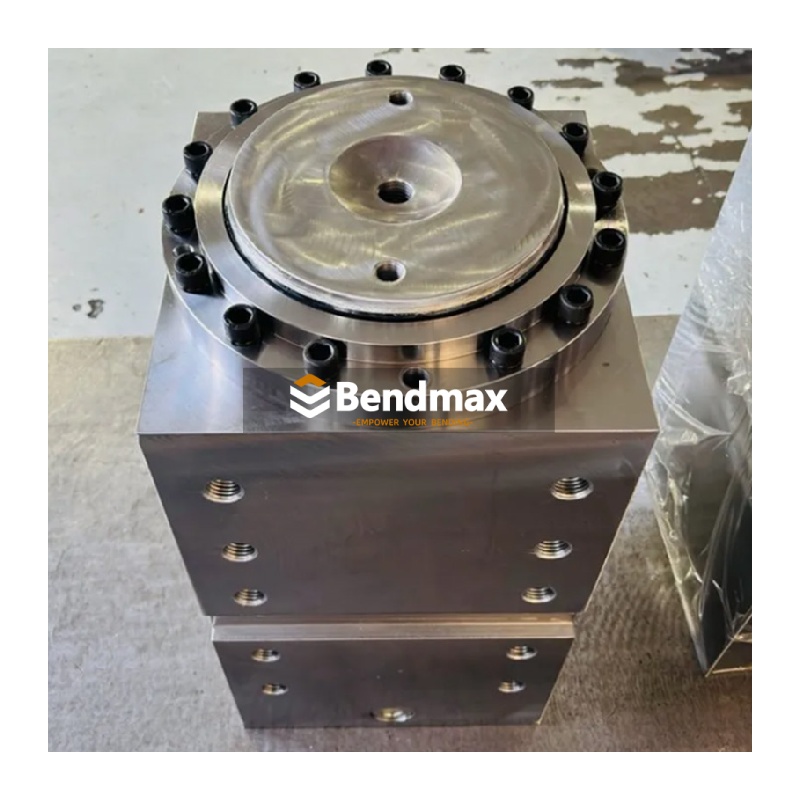

High-Precision Hydraulic Cylinder for Press Brakes – Robust Linear Actuator for Ram Movement

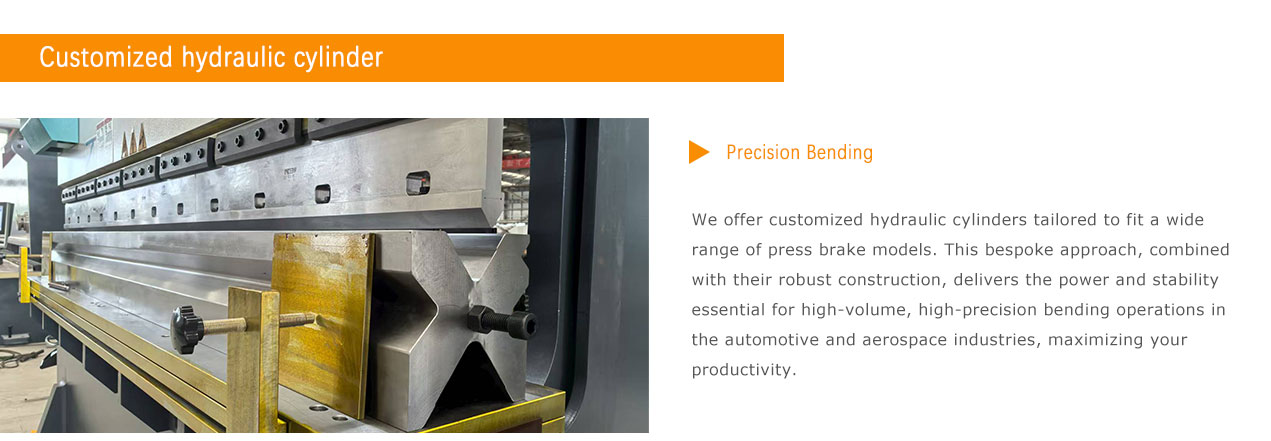

Hydraulic Cylinders Customized Solutions For Metal Forming Processes

- Factory Direct Sale Custom Hydraulic Cylinder for Press Brake

Superior Material Quality

In a press brake, 42CrMo Piston Cylinder creates pressure through a pump and transmits this energy via hydraulic fluid to the cylinders. Each hydraulic cylinder acts as a powerful linear actuator that drives the vertical movement of the ram, ensuring the force is applied uniformly and with high precision during the bending process.

Most press brakes use a dual-cylinder system, with one hydraulic cylinder mounted on each side frame (side housing). This symmetrical configuration ensures even distribution of pressure, minimizes deflection, and contributes to consistent bend angles and improved part accuracy.

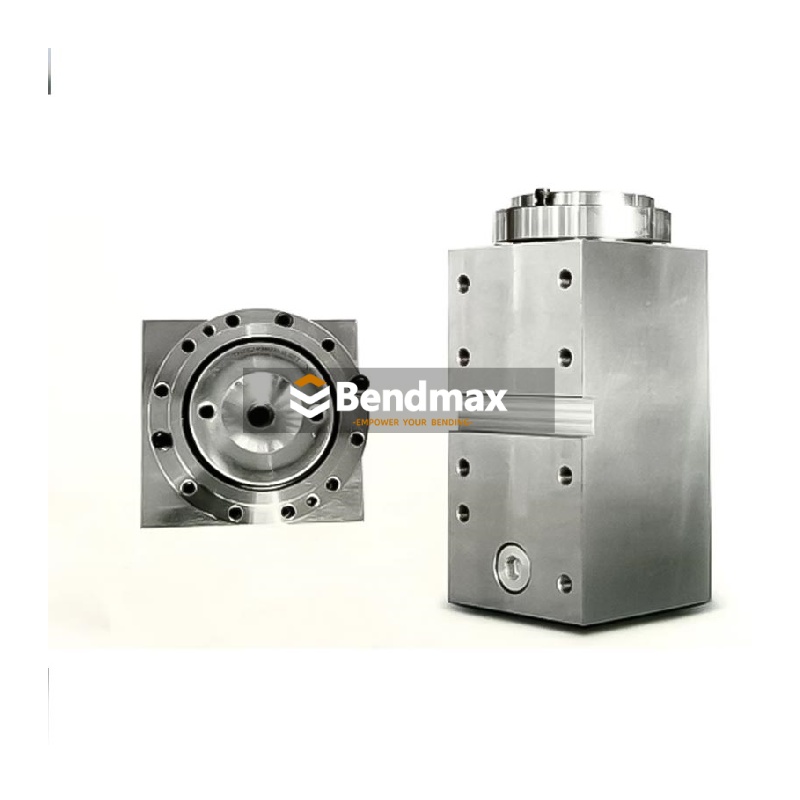

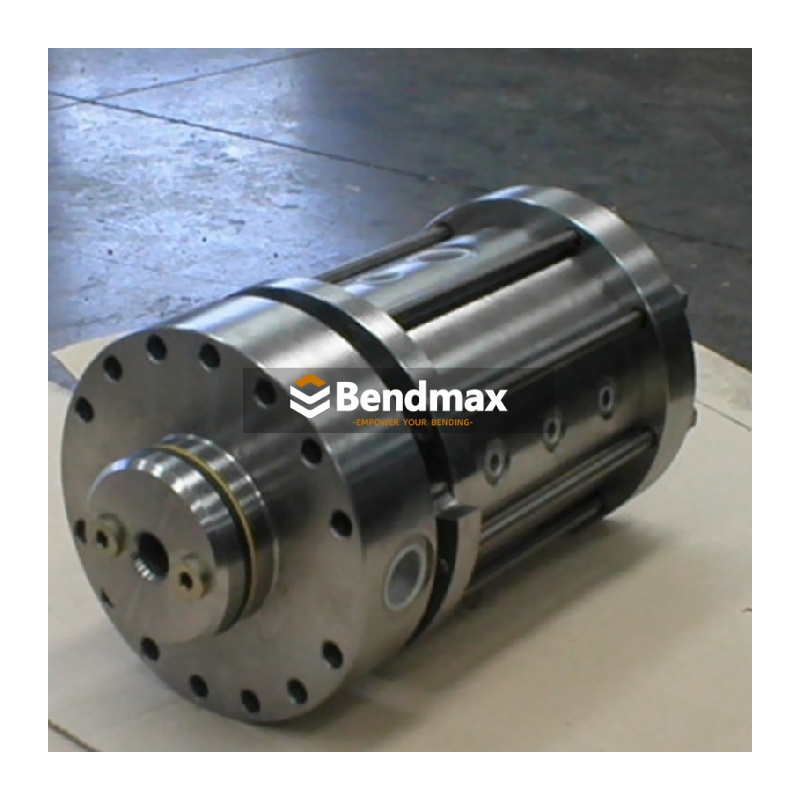

Structural Features

Our hydraulic cylinders are designed with robust architecture and tight manufacturing tolerances. The structure typically includes:

Cylinder Barrel – Houses the piston and hydraulic fluid; made from high-strength alloy steel for durability.

Piston and Piston Rod – The piston divides the internal chamber and transmits force to the ram through the rod.

End Caps and Seals – Ensure airtight chambers, prevent leakage, and withstand high internal pressures.

Bearing and Guide Rings – Maintain piston alignment and reduce wear during operation.

The inner surfaces of the cylinder barrel are precision-honed to reduce friction and ensure smooth piston travel, critical for maintaining control and repeatability.



installation site

 ▶  Installed on the die

 ▶  Installed on the slider



Material Selection



Material choice is crucial for withstanding the high pressure and frequent cycling of hydraulic cylinders. Our cylinders are



constructed from:

Cylinder body: Heat-treated alloy steel (e.g., 42CrMo or ST52) for strength, fatigue resistance, and wear tolerance.

Piston rod: Induction-hardened and chrome-plated steel, offering corrosion resistance and surface hardness to extend lifespan.

Seals: High-performance polyurethane or Viton seals for high-pressure tolerance and thermal stability.



These materials ensure our cylinders perform reliably under high pressure (up to 25–30 MPa) and in demanding working environments.





  REQUEST QUOTES



Press Brake  Alignment Tool

Magnetic Squaring Arm -Integrated



Request Quotes

Press Brake  Alignment Tool

Magnetic Squaring Arm  -Split-style



Request Quotes

Press Brake  Alignment Tool

Magnetic Laser Alignment Device



Request Quotes

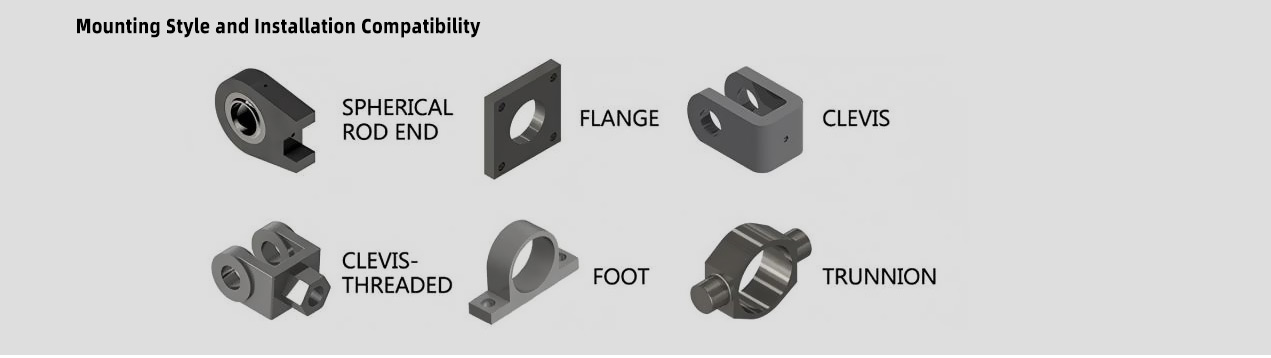

There are several mounting options for hydraulic cylinders, including flange mounts, clevis mounts, trunnion mounts, and side lug mounts. Your choice should align with your press frame and structure. Improper mounting can lead to misalignment, uneven wear, and reduced efficiency. Always verify the compatibility of the cylinder’s mounting design with your press layout.
