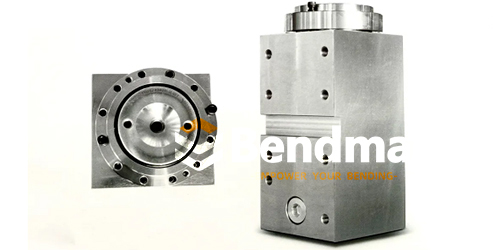

Custom Hydraulic Cylinder Solutions for Press Brakes: Precision, Power, and Long-Term Reliability

Custom Hydraulic Cylinder Solutions for Press Brakes: Precision, Power, and Long-Term Reliability

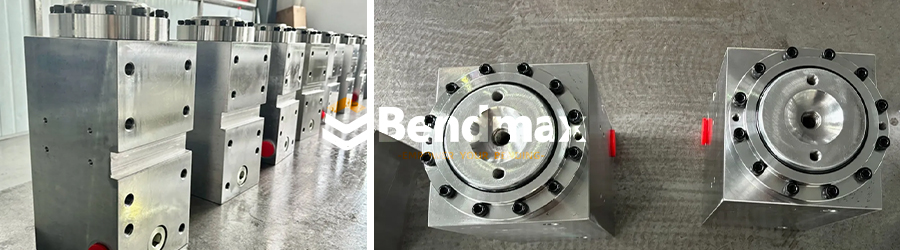

How to Choose and Customize the Right Press Brake Cylinder for Your Application

Hydraulic cylinders are the core components that provide the force needed to operate your press. They convert hydraulic energy into linear mechanical motion, allowing your press to perform tasks like bending, forming, punching, or compacting. The performance of your entire machine heavily depends on the quality and specifications of the hydraulic cylinders you install. Choosing the wrong one can lead to low precision, early wear, and frequent breakdowns.

Load Requirements and Tonnage Capacity

Start by identifying the maximum load your press will need to handle. Hydraulic cylinders come in different tonnage ratings, and selecting the wrong capacity can damage the cylinder or compromise press performance. If your application requires 100 tons of pressing force, for instance, choose a cylinder that matches or slightly exceeds that requirement to ensure safety and efficiency.

Stroke Length and Operating Range

The stroke length is the distance the cylinder rod travels during operation. For deep forming or punching operations, you’ll need a longer stroke. Be sure to match the stroke length to your press design and the materials you work with. Too short a stroke may limit your application range, while too long a stroke can reduce cycle times and accuracy.

As core components in metal fabrication machinery, our hydraulic cylinders provide optimal and precisely customized solutions for metal forming processes.

Our cylinders serve key industries by enabling critical operations: Press Brake Cylinders ensure precision bending in automotive and aerospace manufacturing; Swing Beam and Guillotine Shear Cylinders deliver efficient cutting for steel service centers; and the Main Plate Rolling Cylinder provides the force for cylindrical forming in shipbuilding and energy sectors. We deliver robust solutions that enhance productivity, accuracy, and equipment uptime for our clients worldwide.

Precision Bending

We offer customized hydraulic cylinders tailored to fit a wide range of press brake models. This bespoke approach, combined with their robust construction, delivers the power and stability essential for high-volume, high-precision bending operations in the automotive and aerospace industries, maximizing your productivity.

Efficient Cutting

Designed for reliability in demanding environments, our Swing Beam and Guillotine Shear Cylinders ensure synchronized movement and durable performance. This guarantees clean, burr-free cuts in steel processing and fabrication, maximizing material yield and productivity.

Heavy-Duty Forming

When immense power is required, our Main Plate Rolling Cylinder provides the controlled, powerful force necessary to form thick steel plates into precise cylinders and arcs for the shipbuilding, energy, and heavy machinery sectors.

Common Mistakes to Avoid When Selecting Hydraulic Cylinders

Ignoring the Load Distribution

If your press distributes the load unevenly, you might need multiple cylinders working together. In such cases, synchronization becomes important. Using a single oversized cylinder might not provide the desired precision or could result in off-center pressing, which wears components prematurely.

Overlooking the Working Environment

If your press operates in harsh conditions—such as high heat, corrosive environments, or outdoor use—you’ll need a cylinder with appropriate protective coatings and seals. Stainless steel rods, special paint finishes, and high-temp seals can extend your cylinder’s life dramatically.

Choosing Based on Price Alone

While it’s tempting to go for the cheapest option, hydraulic cylinders are not an area where you want to cut corners. A poor-quality cylinder will cost more in downtime, maintenance, and replacements. Choose a cylinder that balances cost, quality, and after-sales support.

 Choosing the right hydraulic cylinders for your press is essential for maintaining performance, precision, and safety. By considering factors like load capacity, stroke length, bore size, and environmental conditions, you’ll be able to select a cylinder that fits your needs perfectly.

At Bendmax, we design and manufacture custom hydraulic cylinders for press brakes, shearing equipment, heavy forming machines, and industrial hydraulic systems—delivering precision and long-term reliability.
