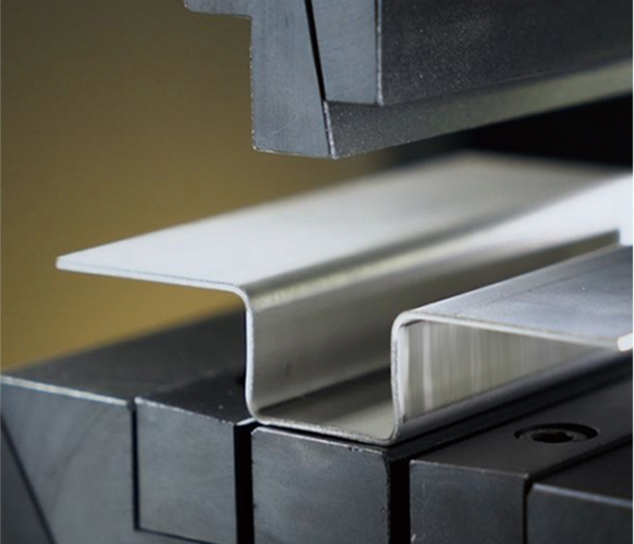

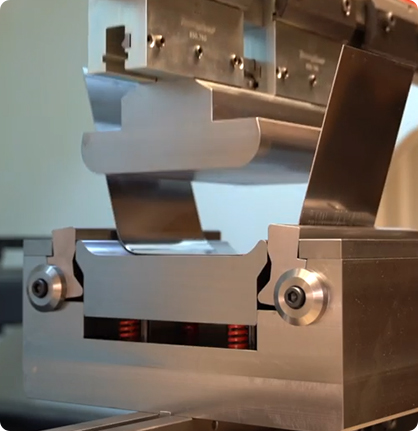

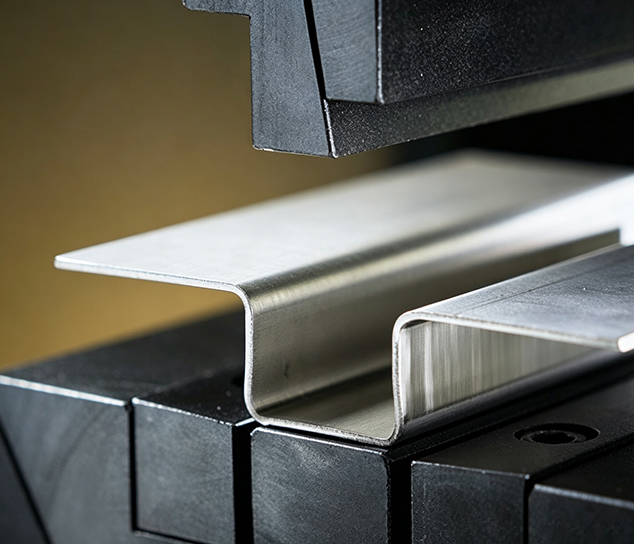

Yes. We manufacture custom press brake punches and dies according to your part drawings, bending requirements, machine specifications, and production needs. We support special profiles, non-standard dimensions, forming tools, and application-specific tooling. You can send us your drawing or tooling dimensions for evaluation and quotation.

For an accurate quotation, please provide the press brake model or tooling system, punch and die dimensions, material type and thickness, bending angle, bending length, required quantity, and part drawing if available. If you are unsure about the tooling specifications, simply send us your workpiece drawing and machine information, and our engineers can recommend a suitable solution.

Our press brake tooling is manufactured using high-quality 42CrMo and C45 steel according to the tooling application and required performance. The material selection is optimized for strength, wear resistance, dimensional stability, and service life.

Our tooling is heat-treated according to its working requirements. The tool body typically achieves HRC 30–35, while the working and contact areas can achieve HRC 54–60 through deep hardening or laser hardening. This combination provides a strong tool body with wear-resistant working surfaces for reliable long-term bending performance.

Production lead time depends on the tooling type, quantity, specifications, and customization requirements. Standard tooling can generally be produced faster, while complex custom tooling requires additional engineering and manufacturing time. We confirm the delivery schedule before production and provide fast delivery options for urgent requirements whenever possible.

Yes. We supply and ship press brake tooling to customers in international markets. Our tooling is suitable for various press brake systems and can be prepared for export shipment according to the customer's requirements. Contact us with your destination and order details for shipping and delivery options.

Yes. We provide OEM press brake tooling manufacturing for distributors, machine tool companies, tooling suppliers, and industrial customers. We can manufacture tooling according to your drawings, samples, technical specifications, dimensions, tolerances, and branding requirements while maintaining consistent quality for repeat orders.

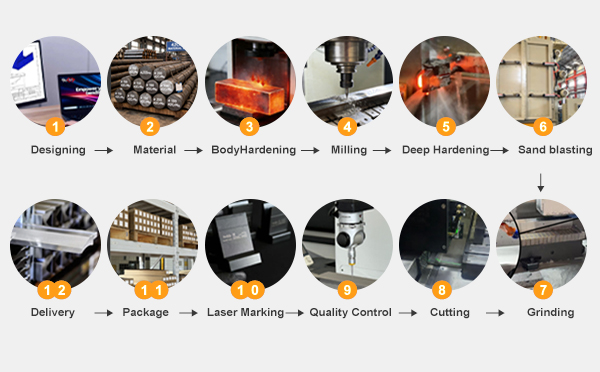

We control accuracy throughout the manufacturing process, from raw material preparation and heat treatment to CNC machining, grinding, and final inspection. Critical dimensions and profiles are checked using precision inspection equipment. Our standard tooling can achieve dimensional accuracy of approximately ±0.02 mm, depending on the tooling design and specification.

Yes. We manufacture tooling compatible with major press brake tooling systems, including WILA, Trumpf, AMADA, Bystronic, and LVD systems. To confirm compatibility, please provide your machine model, tooling system, or a drawing/photo of the existing punch and die. Our engineers can help identify the correct dimensions and clamping configuration.

Tooling selection depends on the material type and thickness, bending angle, inside radius, flange length, V-die opening, bending length, machine tonnage, and required clearance. For complex parts or special applications, we recommend sending us your part drawing and machine specifications so our engineers can select or design the appropriate punch and die.

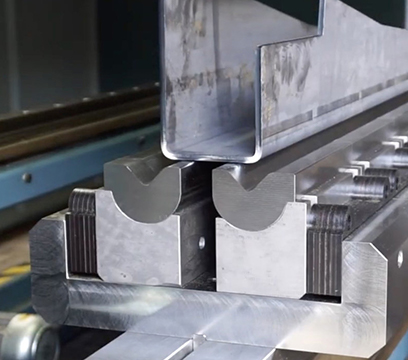

Yes. We can provide tooling solutions designed to minimize bending marks on stainless steel, painted, polished, coated, and other sensitive surfaces. Depending on the application, options may include suitable die geometry, protective solutions, or specially designed non-marking press brake tooling. Send us your material and surface requirements for a suitable recommendation.
